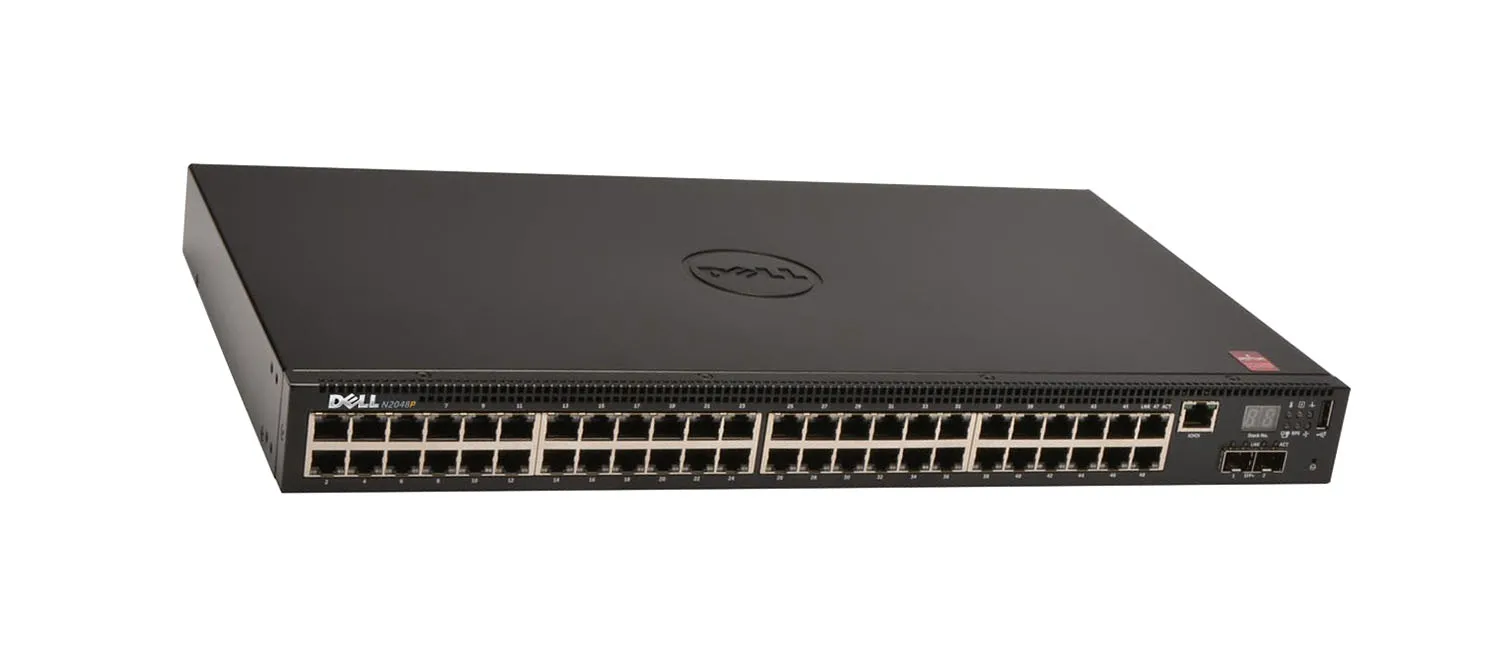

Dell 0H4JYY N2048P 48-Port + 2-Port SFP+ Layer 3 Switch
- 48 x 1GbE RJ45 ports
- 2 x 10GbE SFP+ ports
- Layer 3 routing capabilities
- Supports Power over Ethernet Plus (PoE+)
- Stackable for increased port density and management
- Designed for high availability and performance
- Features advanced security and QoS policies
0H4JYY isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Switching Capacity
- 176 Gbps
- Forwarding Rate
- 131 Mpps
- MAC Address Table Size
- 16K entries
- Jumbo Frames
- 9216 Bytes
- VLANs Supported
- 4094
- Dimensions (H x W x D)
- 1.72" x 17.32" x 11.54"
Product details
The Dell N2048P is a 48-port Layer 3 switch designed for high-performance networking environments. It offers advanced features for managing and routing network traffic efficiently, making it suitable for enterprise-level deployments.
Technical Information
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 131 Mpps |
| MAC Address Table Size | 16K entries |
Additional Specifications
| Jumbo Frames | 9216 Bytes |
| VLANs Supported | 4094 |
| Dimensions (H x W x D) | 1.72" x 17.32" x 11.54" |
Description
The Dell Networking N2040 Series is a family of stackable 10/100/1000 Mbps Ethernet switches designed for high availability, scalability, and performance in the campus core or network edge. The N2048P model specifically offers 48 x 1GbE RJ45 ports with PoE+ support, alongside 2 x 10GbE SFP+ uplink ports, providing a robust solution for demanding network environments. With Layer 3 routing capabilities, the N2048P enables efficient traffic management and segmentation within the network. It supports advanced features such as static and dynamic routing protocols, Quality of Service (QoS) for traffic prioritization, and comprehensive security features including Access Control Lists (ACLs) and port security. The switch is designed for ease of deployment and management, with a familiar command-line interface (CLI) and a graphical user interface (GUI). This switch is ideal for organizations requiring high port density, Power over Ethernet capabilities for devices like IP phones and wireless access points, and the flexibility of Layer 3 functionality. Its stackable architecture allows for up to six switches to be managed as a single logical unit, simplifying network expansion and administration while enhancing resilience.
