Riser Cards

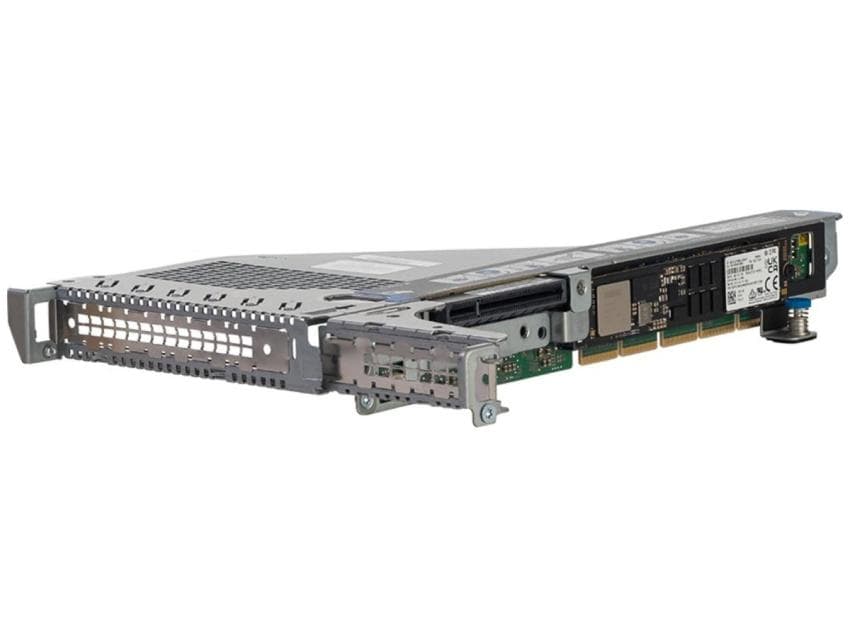

Riser Cards covers the boards that turn expansion slots sideways in rack servers and small desktops. HPE kits include primary, secondary and tertiary risers for the DL360 and DL380 Gen10 and Gen10 Plus, NVMe and M.2 risers, and ML350 Gen11 secondary risers. Dell risers cover the PowerEdge R620, R720, R740 and R815, plus video risers for M605 and M905 blades. A few Mac Pro memory risers and AlphaServer I/O risers are listed too.
- 256 parts
- Free U.S. ground shipping on in-stock parts
Riser Cards: 256 products
Buying guide
Picking the right riser
Position
Servers name risers by position, such as primary, secondary and tertiary, or riser 1, 2 and 3, or left and right. Each position has its own part number.
Slot layout
Risers for one position come in different layouts, such as x16/x16 or x8/x16/x8, trading the number of slots against lanes per slot.
Second processor
In two-socket servers, secondary and tertiary risers are usually wired to the second processor and only work when it's installed.
Card height
Riser kits are sold for low-profile or full-height cards, and a full-height card needs the full-height riser and cage.
Riser Cards
Frequently asked questions
Do I need a riser to add a PCIe card to a rack server?
Yes. 1U and 2U servers mount cards horizontally on risers, so the riser decides how many cards fit, how long and tall they can be, and how many lanes each gets.
What is a BOSS card?
Dell's Boot Optimized Storage Solution: a card that holds two M.2 SATA SSDs in a hardware RAID 1 mirror for the operating system, leaving the front bays free for data drives.
Can I use a riser from a different server generation?
Generally not. Even within one model line, such as the DL380 Gen9 and Gen10, riser connectors and cages change between generations.
