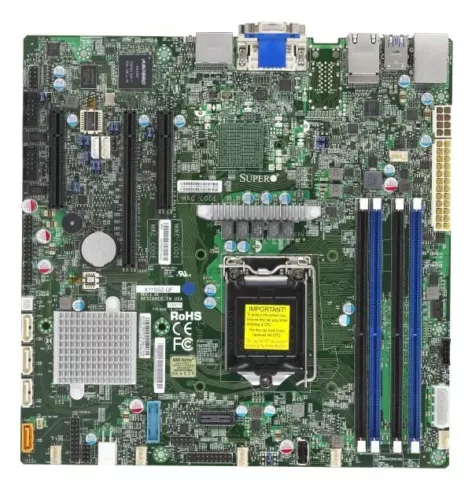

Supermicro X11SSZ-F Socket LGA1151 Intel C236 m-ATX Motherboard
- Socket LGA1151 for Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core processors
- Intel C236 Chipset
- Supports up to 64GB DDR4 ECC UDIMM memory
- Six SATA3 (6Gbps) ports
- Integrated IPMI 2.0 with KVM and Remote Management
- Dual Intel I210-AT Gigabit Ethernet controllers
- One PCIe 3.0 x16 slot and one PCIe 3.0 x4 slot
- M.2 slot for NVMe or SATA SSDs
X11SSZ-F isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Motherboard Form Factor
- Micro ATX
- CPU Socket
- LGA1151
- Chipset
- Intel C236
- Memory Type
- DDR4 ECC UDIMM
- Max Memory Capacity
- 64GB
- Storage Interface
- SATA3 (6Gbps)
Product details
The Supermicro X11SSZ-F is a compact mATX motherboard built for Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core processors. It utilizes the Intel C236 chipset and supports DDR4 ECC memory, making it a solid choice for entry-level servers and workstations requiring stability and reliability.
Technical Information
| Motherboard Form Factor | Micro ATX |
| CPU Socket | LGA1151 |
| Chipset | Intel C236 |
| Memory Type | DDR4 ECC UDIMM |
Additional Specifications
| Max Memory Capacity | 64GB |
| Storage Interface | SATA3 (6Gbps) |
| Networking | Dual Intel I210-AT Gigabit Ethernet |
| Expansion Slots | 1x PCIe 3.0 x16, 1x PCIe 3.0 x4 |
Description
The Supermicro X11SSZ-F motherboard is designed to provide a stable and reliable platform for server and workstation applications. It supports Intel Xeon E3-1200 v5/v6 processors and 6th/7th Generation Intel Core processors, offering a balance of performance and efficiency. The Intel C236 chipset is optimized for server-grade features, ensuring data integrity and system uptime. Memory configuration includes four DIMM slots that can accommodate up to 64GB of DDR4 ECC Unbuffered DIMMs. This ECC memory capability is crucial for preventing data corruption and ensuring the accuracy of computations in critical server environments. For storage, the motherboard offers six SATA3 (6Gbps) ports, providing ample connectivity for hard drives and SSDs, along with an M.2 slot for faster storage options. Expansion capabilities are provided through a PCIe 3.0 x16 slot, suitable for graphics cards or other high-performance add-in cards, and a PCIe 3.0 x4 slot. Network connectivity is handled by dual Intel I210-AT Gigabit Ethernet controllers, ensuring robust and reliable network access. The integrated IPMI 2.0 with KVM and remote management features further enhances its suitability for server deployments by simplifying monitoring and control.
