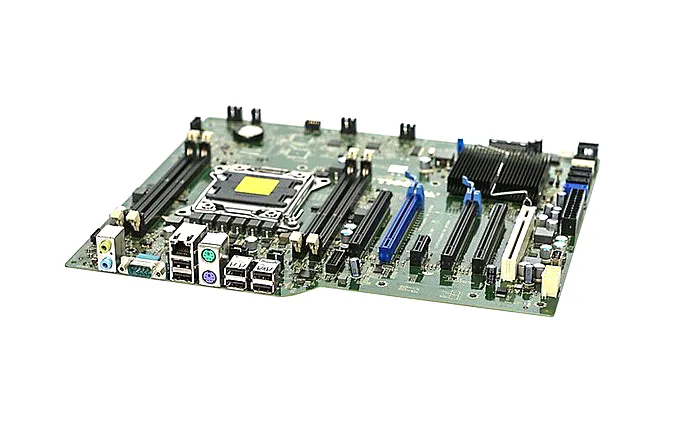

MBD-X9DAX-7TF - SuperMicro Intel C602-J Xeon Processor Supported Dual Socket LGA2011 Extended ATX Server Motherboard
- Dual Socket LGA2011 for Intel Xeon E5-2600 v1/v2 series processors
- Intel C602 Chipset
- Supports up to 512GB DDR3 ECC RDIMM memory
- 8x DIMM slots
- 3x PCIe 3.0 x16 slots, 2x PCIe 3.0 x8 slots, 1x PCIe 2.0 x4 slot
- 8x SATA 3.0 ports (6Gb/s)
- Integrated IPMI 2.0 with KVM
- Dual Intel Gigabit Ethernet controllers
MBD-X9DAX-7TF isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Socket
- Dual LGA2011
- Chipset
- Intel C602
- CPU Support
- Intel Xeon E5-2600 v1/v2 series
- Memory Type
- DDR3 ECC RDIMM
- Max Memory
- 512GB
- Form Factor
- Extended ATX (E-ATX)
Product details
The Supermicro MBD-X9DAX-7TF is an Extended-ATX dual-socket motherboard designed for Intel Xeon E5-2600 v1/v2 series processors. It supports a large amount of DDR3 ECC RDIMM memory and offers extensive expansion capabilities for high-performance computing.
Technical Information
| Socket | Dual LGA2011 |
| Chipset | Intel C602 |
| CPU Support | Intel Xeon E5-2600 v1/v2 series |
| Memory Type | DDR3 ECC RDIMM |
Additional Specifications
| Max Memory | 512GB |
| Form Factor | Extended ATX (E-ATX) |
| Expansion Slots | 3x PCIe 3.0 x16, 2x PCIe 3.0 x8, 1x PCIe 2.0 x4 |
Description
The Supermicro MBD-X9DAX-7TF is a high-end Extended ATX motherboard engineered for demanding server and workstation environments that require significant processing power and memory capacity. It features dual LGA2011 sockets, allowing for the installation of two Intel Xeon E5-2600 v1 or v2 series processors. This dual-processor configuration provides exceptional multi-core performance, making it ideal for virtualization, high-performance computing (HPC), complex simulations, and large-scale data analysis. Memory support is a key strength of the MBD-X9DAX-7TF, with eight DDR3 ECC RDIMM slots capable of supporting up to 512GB of memory. This massive memory capacity is crucial for memory-intensive applications and large datasets, ensuring smooth operation and preventing bottlenecks. The use of ECC RDIMMs (Registered DIMMs) further enhances system stability and reliability by providing error correction and buffering. Expansion capabilities are extensive, featuring three PCIe 3.0 x16 slots, two PCIe 3.0 x8 slots, and one PCIe 2.0 x4 slot. This provides ample room for multiple high-performance graphics cards, RAID controllers, network interface cards, and other expansion peripherals. Storage is managed through eight SATA 3.0 ports, offering high-speed connectivity for SSDs and HDDs. The motherboard also includes integrated IPMI 2.0 with KVM for remote management and dual Intel Gigabit Ethernet controllers for robust network connectivity, making it a versatile platform for advanced computing needs.
