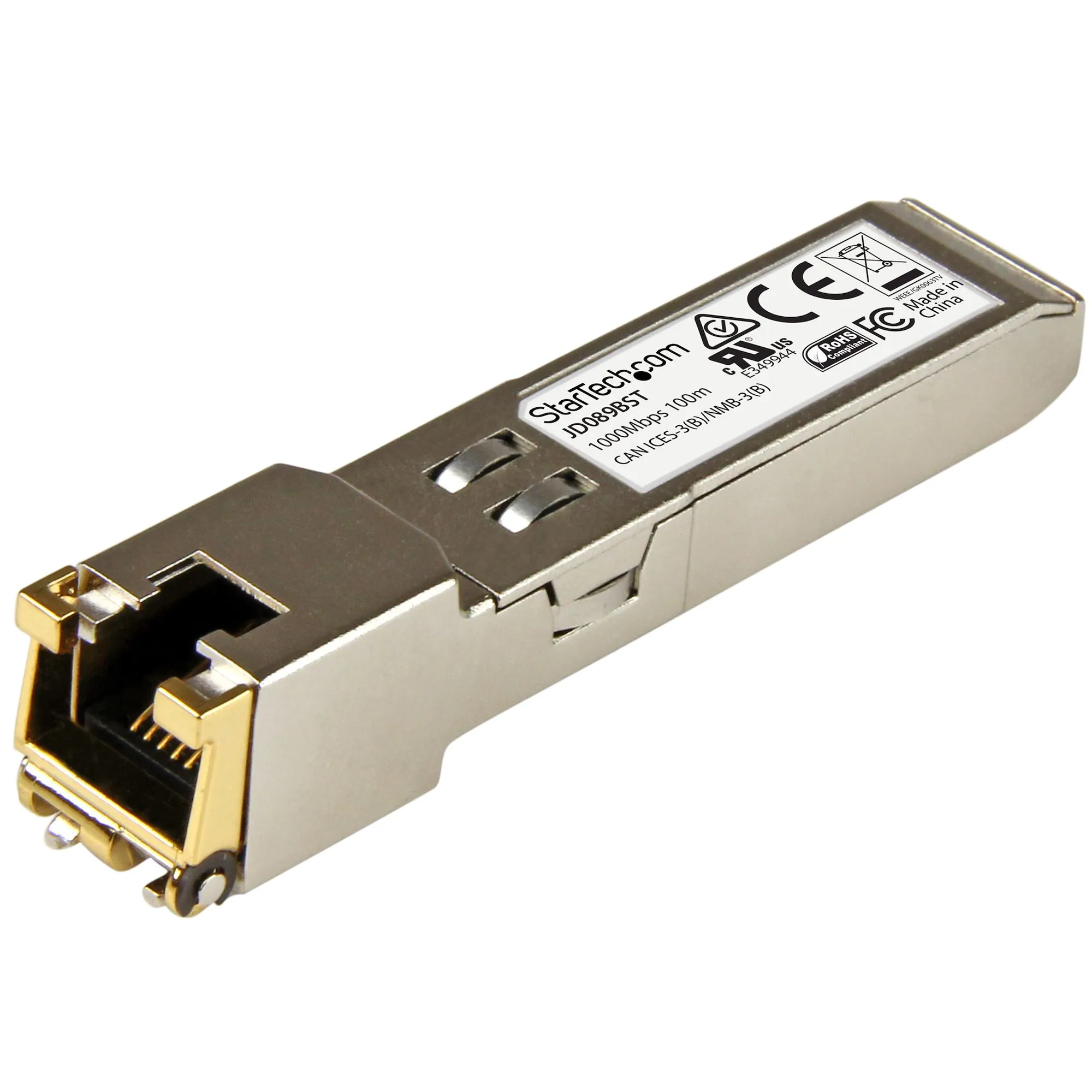

JD089BST - StarTech Gb Rj45 Copper SFP Transceiver Module
- 100% HPE JD089B COMPATIBLE: Works with HPE switches like 5820AF, 12500, 5500, E4800, E4500 and others
- TECHNICAL SPECS: 1000BASE-T / 1Gbps / Copper / RJ-45 Connector / Distances up to 100m (328ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Was $119.65 · You save $17.65
Key specifications
See full specs ↓- SFP transceiver type
- Copper
- Maximum data transfer rate
- 1000 Mbit/s
- Interface type
- SFP
- Maximum transfer distance
- 100 m
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Ethernet LAN (RJ-45) ports
- 1
Documents
Product details
StarTech.com HPE JD089B Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 5820AF, 12500, 5500. SFP transceiver type: Copper, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 4655371 h. Power consumption (typical): 1.3 W. Compliance certificates: RoHS, Certification: CE, FCC, UR. Width: 13.7 mm, Depth: 68 mm, Height: 13.8 mm
Performance
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance | 100 m |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN (RJ-45) ports | 1 |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4655371 h |
Power
| Power consumption (typical) | 1.3 W |
Certificates
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 13.7 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 25 g |
Packaging content
| Quantity per pack | 1 pc(s) |
Packaging data
| Package width | 92 mm |
| Package depth | 114 mm |
| Package height | 33 mm |
| Package weight | 54 g |
Logistics data
| Master (outer) case width | 350 mm |
| Master (outer) case length | 410 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 355 mm |
| Products per master (outer) case | 100 pc(s) |
| Country of origin | China |
Description
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The JD089BST is an HPE JD089B compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: • Maximum Data Transfer Rate: 1000 Mbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 100 m (328 ft) • MTBF: 4,655,371 hours • Power Consumption: Less than 1.3 Watts • Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
