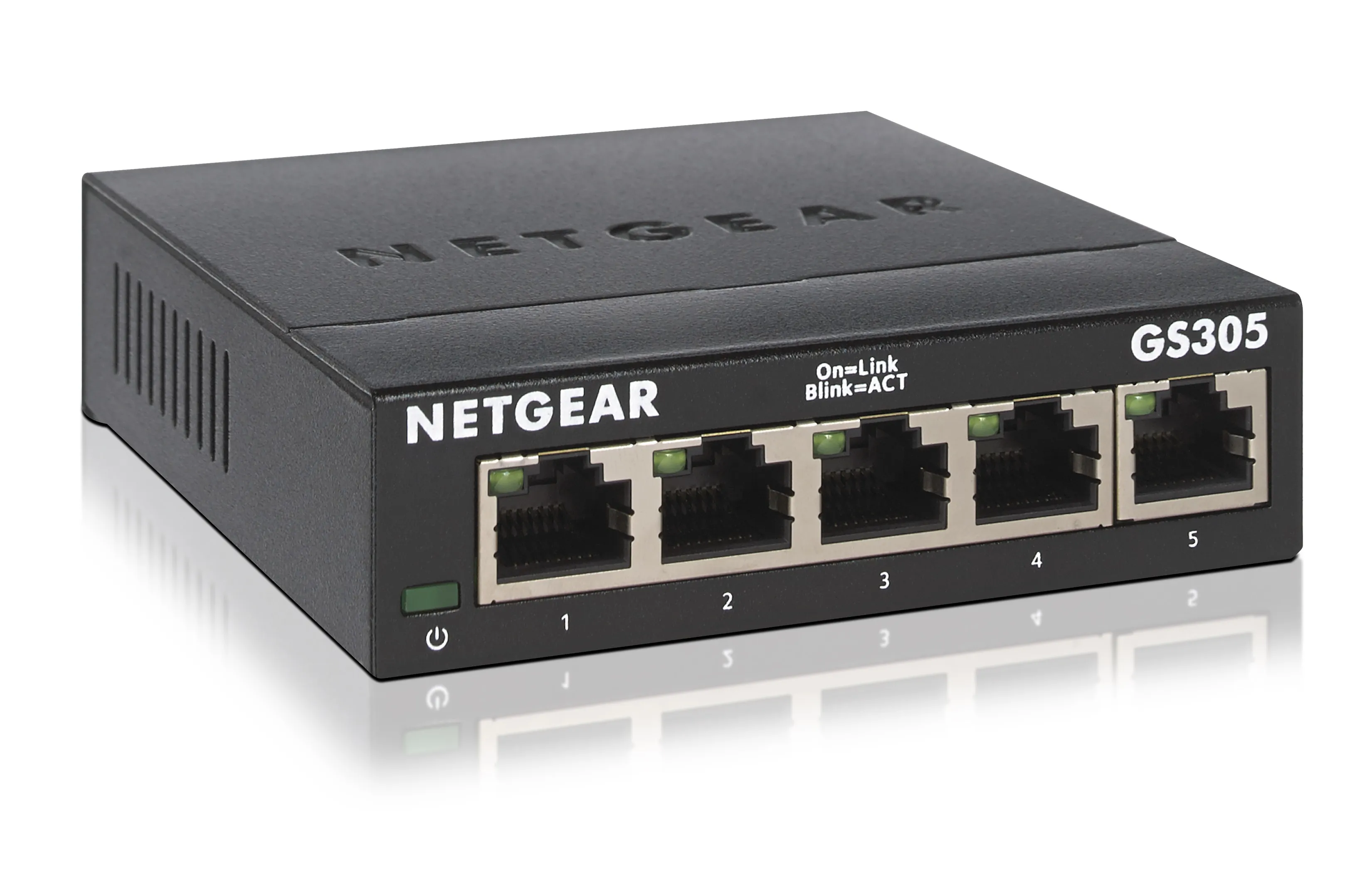

Netgear GS305-300PES 300 Series GS305 5x 1000Base-T Switch

SKU GS305-300PES

Brand Netgear

Auto-MDI/MDIX eliminates the need for crossover cables
LED indicators for ease of use
Energy-efficient technology for power savings
Fanless design for silent operation
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Non-blocking switching architecture for maximum throughput at wire speed
802.1p QoS for traffic/frame prioritization
Plug-and-play; no setup required
Durable and rugged metal case
Ideal for small office and home networks
Standards-based technology ensures interoperability with any standards-based devices in the existing network

Available to order

GS305-300PES isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.

Key specifications

See full specs ↓

Switch type: Unmanaged
Switch layer: L2
Quality of Service (QoS) support: Yes
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5

Documents

Product details

NETGEAR GS305. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable

Management features

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack

Network

Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Cable length detection	Yes

Data transmission

Switching capacity	10 Gbit/s
Forwarding rate	1.448 Mpps
MAC address table	2000 entries
Latency (1 Gbps)	2.6 µs
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	128 MB

Design

Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
Wall mountable	Yes

Performance

Mean time between failures (MTBF)

3831422 h

Power

Power consumption (max)

2.15 W

Power over Ethernet (PoE)

Other features

Warranty period

3 year(s)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	7.35 BTU/h

Weight & dimensions

Width	101 mm
Depth	94 mm
Height	29 mm
Weight	250 g

Technical details

Shipping (inner) case height	35.7 cm
Shipping (inner) case width	49.9 cm
Shipping (inner) case length	31.8 cm
Shipping (inner) case net weight	10.7 kg
Products per shipping (inner) case	20 pc(s)

Certificates

Certification

CE Mark FCC Part 15 Class B IC Class B RCM VCCI

Logistics data

Harmonized System (HS) code

85176990

Description

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Condition: Refurbished
