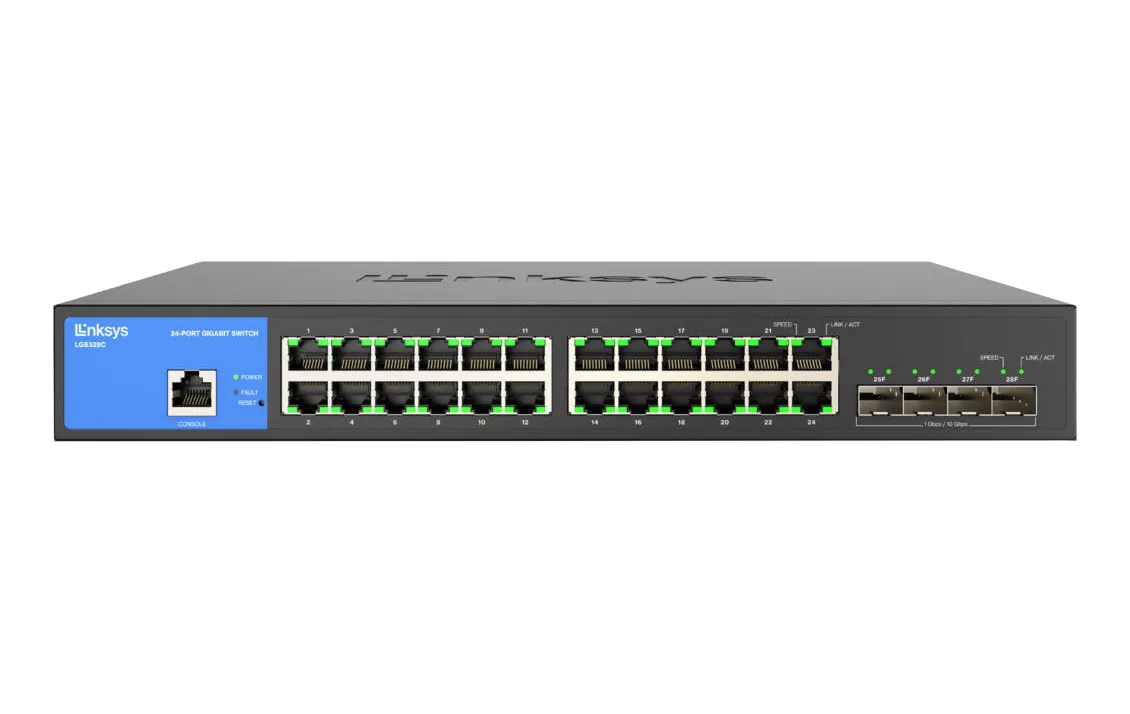

Linksys LGS328C Business 24 x Ports + 4 x Ports SFP+ GE Switch
- 8, 24 or 48 Gigabit Ethernet Ports
- Dedicated SFP or SFP+ Uplink Ports
- Advanced Network Security and QoS
- Static Routing and IPv6 support
- Ideal for surveillance cameras, access control, ProAV, projectors, access points, VoIP phones, and other demanding applications
- Integrated Power over Ethernet Plus (Managed PoE+ Switches)
LGS328C isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Switch type
- Managed
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity
- 24
Product details
Linksys 24 Port Gigabit Managed Network Switch with 4 x 10G Uplink SFP+ Slots. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Management features
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad |
| 10G support | No |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 256 |
Data transmission
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
Security
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SNMP |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | Guest VLAN |
| Authentication type | RADIUS |
Multicast features
| Multicast support | Yes |
Protocols
| Management protocols | HTTP, HTTPS |
| IPv4 FIB entries | 63 |
| IPv6 FIB entries | 21 |
Design
| Stackable | Yes |
| Product colour | Black, Blue |
| Housing material | Metal |
| LED indicators | Fault, Power |
Performance
| Memory type | DRAM |
| Internal memory | 512 MB |
| Firmware upgradeable | Yes |
Power
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.7 A |
| Power consumption (max) | 23.95 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 331 mm |
| Depth | 231.9 mm |
| Height | 43.9 mm |
| Weight | 2.52 kg |
Packaging data
| Package type | Box |
| Package width | 398 mm |
| Package depth | 332 mm |
| Package height | 102.1 mm |
| Package weight | 3.1 kg |
Logistics data
| Country of origin | Taiwan |
| Master (outer) case width | 382.3 mm |
| Master (outer) case length | 328.9 mm |
| Master (outer) case height | 356.6 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 10.1 kg |
| Products per master (outer) case | 3 pc(s) |
Description
LGS3 Range Managed PoE+ Max Power Gigabit Switches Managed PoE+ Gigabit Switch Managed Gigabit Switches Designed for security and speed, Linksys Managed Gigabit Switches provide a business-class network you can grow on Network Expansion Our managed switches include features for quickly expanding and growing your network. Multiple high-bandwidth trunks between switches enhance availability and redundancy. Spanning Tree Protocol (STP) and Storm Control features help control planned or inadvertent cable loops, so you can confidently build a mesh of switches and quickly expand your network to support your growing workforce. Network Security Unauthorised access to the network and mission-critical data is a constant concern. Our managed switches help secure networks through port authentication, requiring clients to authenticate themselves before any data is passed. Advanced DHCP snooping and IP-MAC binding functions ensure network integrity and help prevent network attacks. Quality of Service (QoS) Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency. Power over Ethernet Plus (PoE+) Linksys managed switches support the latest 802.3at (PoE+) standards and provide up to double the power budget per Gigabit Ethernet port while offering 802.3af (PoE) backward- compatibility. Power over Ethernet reduces electrical wiring costs, simplifies installation, and supports network devices such as IP cameras and wireless access points in optimal indoor and outdoor locations.
