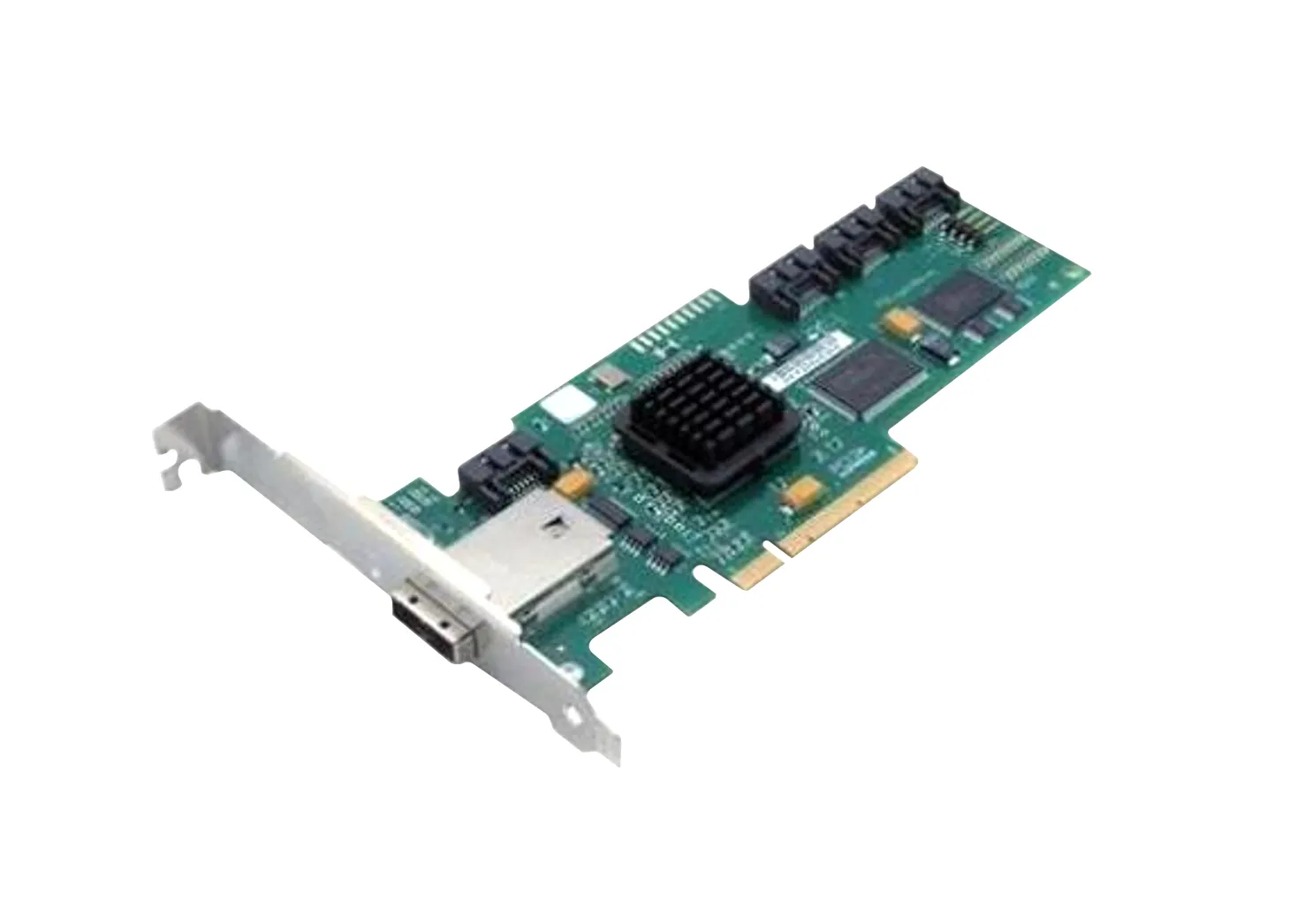

4XB0F28646 - Lenovo ThinkServer LSI9286CV-8e 6Gb SAS RAID HBA
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- 6 Gbit/s
- SSD support
- Number of devices supported: 240
- 1251284 h
4XB0F28646 isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Supported storage drive interfaces
- SAS, Serial ATA
- Host interface
- PCI Express x8
- PCI Express slots version
- 3.0
- External mini-SAS ports
- 2
- RAID levels
- 0, 1, 5, 6, 10, 50, 60
- RAID Level Migration
- Yes
Product details
Lenovo LSI9286CV-8e. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 0, 1, 5, 6, 10, 50, 60, Data transfer rate: 6 Gbit/s, Internal memory: 1024 MB. Built-in processor: LSISAS2208, Processor frequency: 800 MHz, Processor family: Dual-Core. Voltage: +3.3/+12 V. Windows operating systems supported: Windows 2000, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise,...
Ports & interfaces
| Supported storage drive interfaces | SAS, Serial ATA |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| External mini-SAS ports | 2 |
Performance
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID Level Migration | Yes |
| Data transfer rate | 6 Gbit/s |
| SSD support | Yes |
| Internal memory | 1024 MB |
| Internal memory type | DDR3 |
| Memory clock speed | 1333 MHz |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 240 |
| Online Capacity Expansion | Yes |
| Mean time between failures (MTBF) | 1251284 h |
| Certification | CE,C-Tick,BSMI,KCC,UL,TUV |
Processor
| Built-in processor | LSISAS2208 |
| Processor frequency | 800 MHz |
| Processor family | Dual-Core |
Power
| Voltage | +3.3/+12 V |
System requirements
| Windows operating systems supported | Windows 2000, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Other features
| PCI Card form factor | Half-height (low-profile) |
| Maximum supported storage capacity | 64 TB |
Description
ThinkServer host bus adapters (HBAs) are built for the demanding enterprise, with the high field-proven reliability in the industry and advanced management capabilities enabling enterprise scalability. ThinkServer SAS HBAs can create the fabric tying the components together into a unified storage effort whether solutions use SAS or SATA, hard disk or flash, or even internal or external storage elements.Bandwidth to support critical applications and solid state drive (SSD) arrays with PCIe 3.0 connectivity Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60 Compatible with optional CacheVault power loss protection module
