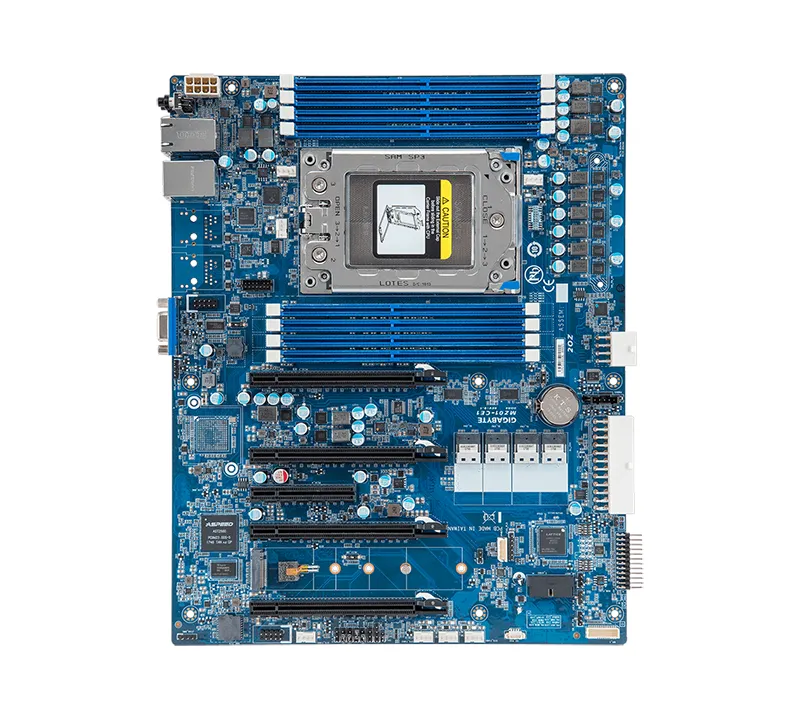

Gigabyte MZ01-CE1 Socket SP3 System on Chip Chipset ATX Motherboard
- AMD EPYC™ 7001 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I210-AT)
- 1 x dedicated management port
- 4 x SlimSAS (with 16 x SATA 6Gb/s) ports
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- Up to 5 x PCIe Gen3 expansion slots
- Aspeed® AST2500 remote management controller
MZ01-CE1 isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Processor manufacturer
- AMD
- Processor socket
- Socket SP3
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 8
- Supported memory clock speeds
- 2133,2400,2666 MHz
- Maximum internal memory
- 128 GB
Product details
GIGABYTE MZ01-CE1. Processor manufacturer: AMD, Processor socket: Socket SP3. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Supported memory clock speeds: 2133,2400,2666 MHz. Supported storage drive interfaces: M.2, SlimSAS. On-board graphics card model: Aspeed AST2500. Component for: Server, Motherboard form factor: ATX, Motherboard chipset family: AMD
Processor
| Processor manufacturer | AMD |
| Processor socket | Socket SP3 |
Memory
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Supported storage drive interfaces | M.2, SlimSAS |
Graphics
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| Number of COM connectors | 2 |
| TPM connector | Yes |
Rear panel I/O ports
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Compatible operating systems | Windows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later Red Hat Enterprise Linux 9.0 (x64) or later SUSE Linux Enterprise Server 11 SP4 (x64) or later SUSE Linux Enterprise Server 12 SP3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 Update1 or later VMware ESXi 6.7 or later VMware ESXi 7.0 or later VMware ESXi 8.0 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 or later |
Expansion slots
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| Number of M.2 (M) slots | 1 |
Operational conditions
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Package width | 360 mm |
| Package depth | 330 mm |
| Package height | 80 mm |
Description
AMD EPYC™ Processors The New x86 Option AMD’s return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE’s extensive design expertise across a range of chipset platforms, this AMD EPYC™ platform is already receiving acclaim for its high specification: Memory I/O Network connectivity This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options. Comprehensive I/O Both single- and dual-socket CPUs come equipped with 128x PCIe lanes, providing extensive I/O options. This is a huge improvement in I/O vs. incumbent x86 offerings. Increased I/O allows for flexibility in extending your storage, networking or compute to a level previously unattainable with standard server motherboards. In addition, the integrated nature of the processor – designed as a system-on-chip (SoC) - means that there is no need for a separate PCH and less additional switches needed for expansion lanes. Dense, High Speed Storage Support Onboard M.2 GIGABYTE AMD EPYC™ platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks. Delivering up to 32 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA devices. Data Security TPM 2.0 Module* GIGABYTE’s EPYC™ platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors). Carefully Selected Components GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability. NVIDIA® V100 Tensor Core GPU Support GIGABYTE’s AMD EPYC server systems and motherboards are fully compatible and qualified to use with NVIDIA® V100 Tensor Core GPUs, an advanced data center GPU built to accelerate AI, HPC, and graphics. Powered by NVIDIA Volta™ architecture and with 640 Tensor Cores, the NVIDIA V100 has broken the 100 teraflops (TFLOPS) barrier of deep learning performance — enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.
