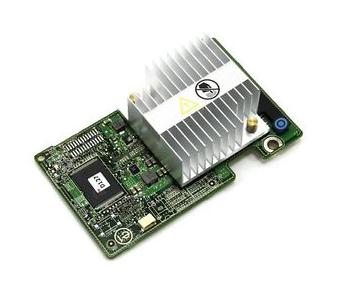

K09CJ - Dell PERC H310 8-Port 6GB/s SAS RAID Controller
- 8-port SAS 6Gb/s interface.
- PCIe 2.0 x8 bus interface.
- Supports RAID levels 0, 1, 5, 10.
- Provides basic data redundancy and fault tolerance.
- Enhances storage performance for entry-level servers.
- Designed for Dell PowerEdge servers.
- Cost-effective RAID solution.
- Manages SAS and SATA drives.
Was $54.94 · You save $7.94
Key specifications
See full specs ↓- Product Type
- RAID Controller Card
- Interface
- SAS 6Gb/s
- Bus Interface
- PCIe 2.0 x8
- Number of Ports
- 8
- RAID Levels Supported
- 0, 1, 5, 10
- Brand
- Dell PERC
Product details
The Dell K09CJ PERC H310 is an 8-port SAS 6Gb/s PCIe 2.0 x8 RAID controller card. It provides essential RAID functionality for entry-level to mainstream servers, offering data protection and performance improvements.
Technical Information
| Product Type | RAID Controller Card |
| Interface | SAS 6Gb/s |
| Bus Interface | PCIe 2.0 x8 |
| Number of Ports | 8 |
Additional Specifications
| RAID Levels Supported | 0, 1, 5, 10 |
| Brand | Dell PERC |
| Part Number | K09CJ |
Description
The Dell K09CJ PERC H310 is an entry-level RAID controller card designed to provide essential data protection and performance enhancement for Dell PowerEdge servers. It features eight internal SAS 6Gb/s ports, allowing it to connect and manage both SAS and SATA hard drives or SSDs. This controller supports common RAID levels, including RAID 0 for performance, RAID 1 for mirroring, RAID 5 for a balance of performance and redundancy, and RAID 10 for high performance with redundancy. Utilizing the PCIe 2.0 x8 interface, the H310 offers sufficient bandwidth for many mainstream server applications. While it doesn't include onboard cache memory like higher-end PERC controllers, it still provides significant improvements over software RAID or direct-attached storage, particularly in terms of reliability and basic performance gains. This makes it a cost-effective solution for businesses that require data redundancy without the need for the most advanced performance features. The PERC H310 is a popular choice for small to medium-sized businesses or for servers used in less I/O-intensive roles. It simplifies storage management by allowing multiple drives to be configured as a single logical unit, enhancing data integrity and offering a degree of fault tolerance against single drive failures. Its straightforward implementation makes it accessible for administrators looking for a reliable RAID solution.
