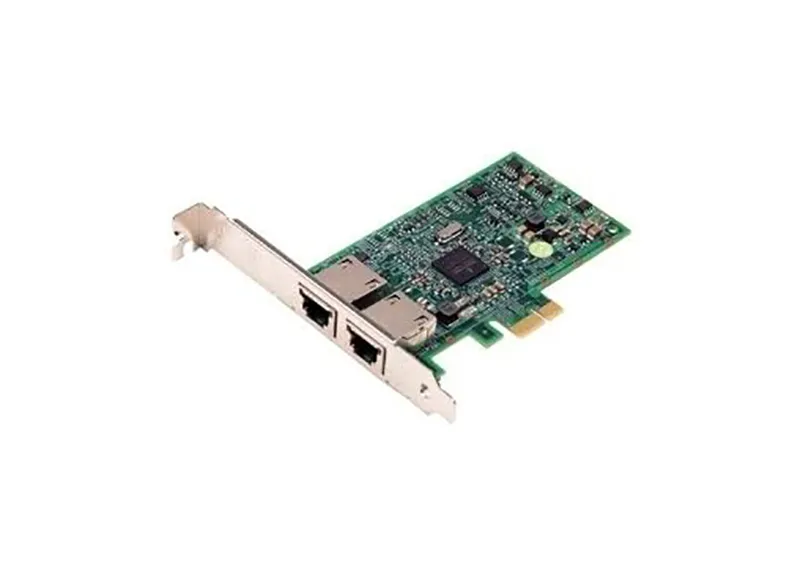

5J77Y - Dell Broadcom 5720 Dual Port 1GB PCI-Express Full Height Network Interface Card
- Wired
- PCI Express Ethernet
- 1000 Mbit/s 10/100/1000BaseT(X)
- Internal Component for: Server
5J77Y isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Connectivity technology
- Wired
- Host interface
- PCI Express
- Interface
- Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- Maximum data transfer rate
- 1000 Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3u
Documents
Product details
DELL 540-BBGW. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product colour: Green
Ports & interfaces
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
Network
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| LAN controller | Broadcom BCM5720 |
Design
| Component for | Server |
| Product colour | Green |
| Internal | Yes |
| Compatible products | DELL PowerEdge R320, R420, R430, R520, R530, R620, R630, R720, R720xd, R730, R730XD, R820, VRTX, PowerVault DL2300, DR4100, DX6112 SN |
System requirements
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Packaging data
| Quantity per pack | 1 pc(s) |
Logistics data
| Harmonized System (HS) code | 85176990 |
Description
The Broadcom 5720 DP 1Gb PCI Network Interface Card in a low-profile form factor from DellTM is responsible for connecting your desktop and server to your network. Its Remote management support enables you to maximize management resources. This product is compatible with the following systems: - PowerEdge R320 - PowerEdge R420 - PowerEdge R430 - PowerEdge R520 - PowerEdge R530 - PowerEdge R620 - PowerEdge R630 - PowerEdge R720 - Poweredge R720xd - PowerEdge R730 - PowerEdge R730XD - PowerEdge R820 - PowerEdge VRTX - PowerVault DL2300 - PowerVault DR4100 - PowerVault DX6112 SN.
