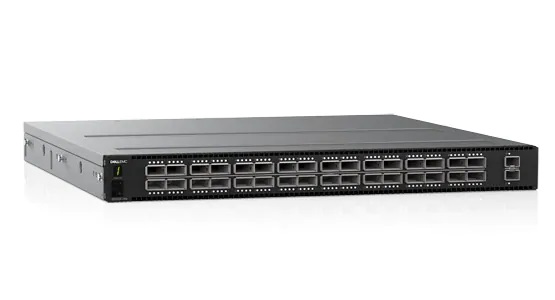

Dell 210-APHJ S5232F-ON -Port + 34-Port SFP+ QSFP28 Layer 3 Switch
SKU 210-APHJ
Shop all Dell parts (59,009) ›- Managed L2/L3 CLI, SNMP, REST, API’s
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- 10G support
- 1U Rack mounting Stackable
- Power supply included
In Stock
$5,352.00
Free U.S. ground shippingArrives Mon, Nov 9 – Mon, Nov 16Faster options available at checkout
Key specifications
See full specs ↓- Switch type
- Managed
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- IP, IF, LLDP EXT1/3, LAG, Dell-Vendor, TCP, UDP, SNMPv2, ETHERLIKE, SFLOW, PFC
- Basic switching RJ-45 Ethernet ports type
- No
Documents
Product details
DELL S-Series S5232F-ON. Switch type: Managed, Switch layer: L2/L3. Switching optical modules type: 100 Gigabit Ethernet. Console port: RJ-45. MAC address table: 160000 entries, Switching capacity: 3200 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U
Specifications
- Switch type
- Managed
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- IP, IF, LLDP EXT1/3, LAG, Dell-Vendor, TCP, UDP, SNMPv2, ETHERLIKE, SFLOW, PFC
- Basic switching RJ-45 Ethernet ports type
- No
- SFP+ module slots quantity
- 2
- Fiber ports quantity
- 32
- Fiber optic connector
- QSFP28
- Console port
- RJ-45
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x
- 10G support
- Yes
- Port mirroring
- Yes
- Link aggregation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Tagged VLAN
- Switching optical modules type
- 100 Gigabit Ethernet
- Switching capacity
- 3200 Gbit/s
- MAC address table
- 160000 entries
- Packet buffer memory
- 32 MB
- Access Control List (ACL) IPv4 entries
- 128000
- Access Control List (ACL) IPv6 entries
- 64000
- Multicast support
- Yes
- Management protocols
- CLI, SNMP, REST, API’s
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Rack mounting
- Yes
- Stackable
- Yes
- Form factor
- 1U
- Product colour
- Black
- LED indicators
- Yes
- Ventilation system
- Front-to-back airflow
- Number of fans
- 4 fan(s)
- Built-in processor
- Yes
- Internal memory
- 16000 MB
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
- Number of power supply units
- 2
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Power consumption (typical)
- 360 W
- Power consumption (max)
- 635 W
- Power over Ethernet (PoE)
- No
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 2167 BTU/h
- Width
- 434 mm
- Depth
- 460 mm
- Height
- 44 mm
- Compliance certificates
- RoHS
Description
Flexible architectural agility Designed for architectural agility and flexibility to help data centers smoothly migrate to a software-designed data center.
Condition: Refurbished
Free U.S. ground shipping
Typically 1–2 days handling, 3–7 days in transit.
Purchase orders accepted
Government, enterprise, data center and small business.
Volume pricing
Buying 10+ units?
Get volume pricing and availability for 210-APHJ.
