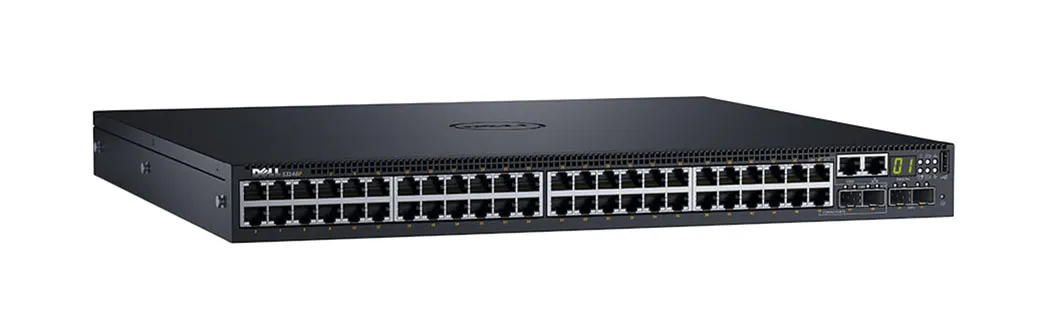

Dell 069CVN S3148p 48x PoE+ 2x Port 10Gb SFP+ 2x Port Combo SFP Switch
- 48 x 1Gbps PoE+ Ethernet ports
- 2 x 10Gbps SFP+ uplink ports
- 2 x Combo SFP ports
- PoE+ (802.3at) support for up to 30W per port
- Layer 2+ switching capabilities
- Ideal for access layer deployments
- High port density for connecting numerous devices
- Energy-efficient design
We'll confirm the current price and availability for 069CVN.
Key specifications
See full specs ↓- Port Count
- 48 x 1Gbps PoE+, 2 x 10Gbps SFP+, 2 x Combo SFP
- PoE Standard
- PoE+ (802.3at)
- Uplink Speed
- 10Gbps
- Switching Layer
- Layer 2+
- Model Series
- S3148p
Product details
The Dell 069CVN is a S3148p network switch featuring 48 x PoE+ Gigabit Ethernet ports and 2 x 10Gb SFP+ ports, plus 2 x combo SFP ports. This switch is designed for high-density access layer deployments, providing Power over Ethernet for devices like IP phones and wireless access points, along with high-speed uplinks.
Technical Information
| Port Count | 48 x 1Gbps PoE+, 2 x 10Gbps SFP+, 2 x Combo SFP |
| PoE Standard | PoE+ (802.3at) |
| Uplink Speed | 10Gbps |
Additional Specifications
| Switching Layer | Layer 2+ |
| Model Series | S3148p |
Description
The Dell Networking S3148p switch, identified by SKU 069CVN, is a high-performance, feature-rich network switch designed primarily for the access layer in enterprise and campus network environments. It boasts 48 auto-negotiating 10/100/1000Base-T Ethernet ports, each capable of delivering Power over Ethernet Plus (PoE+) according to the IEEE 802.3at standard. This allows the switch to simultaneously provide network connectivity and power to devices such as IP phones, wireless access points, security cameras, and other PoE-enabled endpoints, simplifying deployment and reducing the need for separate power cabling. The switch offers a substantial PoE budget to support a high density of powered devices. In addition to its extensive copper port density, the S3148p is equipped with two dedicated 10 Gigabit Ethernet SFP+ (Small Form-factor Pluggable Plus) ports for high-speed uplinks to the network core or distribution layer. It also includes two additional combo SFP ports, offering flexibility in network design and connectivity options. These high-speed uplinks ensure that the switch can handle significant traffic loads from the connected access devices without becoming a bottleneck. The switch operates at Layer 2+ (enhanced Layer 2) with static routing capabilities, providing advanced traffic management and segmentation features like VLANs, QoS, and link aggregation. Designed for modern network demands, the Dell 069CVN switch emphasizes energy efficiency and simplified management. It supports various management interfaces, including a command-line interface (CLI) and a web-based graphical user interface (GUI), along with protocols like SNMP, allowing for comprehensive network monitoring and control. Its robust feature set, combined with high port density and Power over Ethernet capabilities, makes the S3148p an ideal choice for organizations looking to deploy scalable, efficient, and feature-rich access layer solutions.
Condition: Refurbished
Free U.S. ground shipping
Typically 1–2 days handling, 3–7 days in transit.
Purchase orders accepted
Government, enterprise, data center and small business.
Buying 10+ units?
Get volume pricing and availability for 069CVN.
