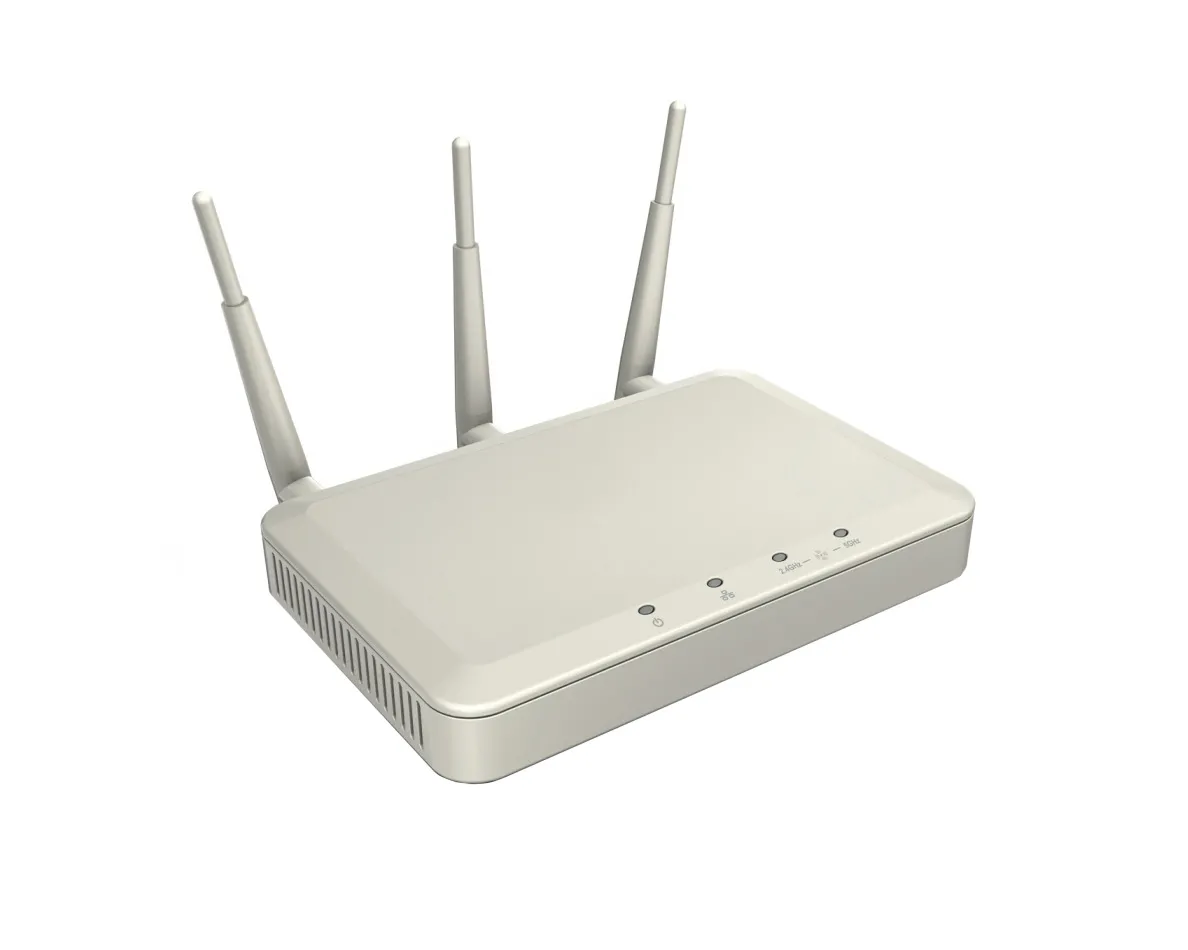

D-Link DBT-900AP/B PersonalAir DBT-900AP 1 x Port 10/100Base-TX 100Mbit/s 2.4GHz Bluetooth-To-LAN Ac...

SKU DBT-900AP/B

Brand D-Link

Type: Wireless Access Point with Bluetooth
Ethernet Port: 1 x 10/100Base-TX
Wireless Frequency: 2.4GHz
Connectivity: Bluetooth to LAN bridge
Model: PersonalAir DBT-900AP
Enables Bluetooth devices to access wired network
Suitable for small office/home office (SOHO) environments
Provides wireless access point functionality

Available to order

DBT-900AP/B isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.

Key specifications

See full specs ↓

Maximum data transfer rate: 100 Mbit/s
Bandwidth: 2.400 GHz
Modulation: GFSK
Power requirements: 5V, 2A
LED indicators: LAN, Power
Antenna type: External

Documents

Brochure D-Link DBT-900AP/BBrochure · PDF

Product details

D-Link DBT-900AP Bluetooth-to-LAN Access Point. Maximum data transfer rate: 100 Mbit/s

Features

Maximum data transfer rate	100 Mbit/s
Bandwidth	2.400 GHz
Modulation	GFSK

Power

Power requirements

5V, 2A

Design

LED indicators

LAN, Power

Antenna

Antenna type	External
Antennas quantity	1
Antenna gain level (max)	2 dBi

Weight & dimensions

Dimensions (WxDxH)	104 x 29 x 63 mm
Weight	100 g

Other features

I/O ports	1x RJ-45
Outdoor range	20m
Compatibility	Bluetooth 1.1, IEEE 802.3u Ethernet

Operational conditions

Operating temperature (T-T)

5 - 50 °C

Description

The D-Link DBT-900AP Bluetooth-to-LAN Access Point is designed to extend LAN network services to Bluetooth-enabled devices such as laptop computers and PDAs.* This Access Point provides a new solution for wireless connection of multiple users and devices on a Bluetooth network. It enables mobile users using devices equipped with the Bluetooth technology to connect wirelessly to a local network (LAN) and the Internet.

Condition: Refurbished
