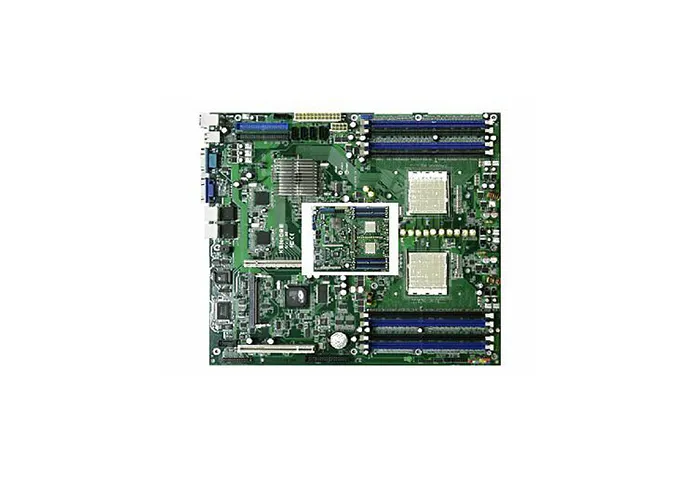

Asus DSBV-D BULK Server Board (Motherboard) Intel 5000V Enhanced
- Intel LGA 771 (Socket J)
- SSI CEB Intel® 5000V
- Maximum internal memory: 24 GB
DSBV-D isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Processor manufacturer
- Intel
- Processor socket
- LGA 771 (Socket J)
- Maximum internal memory
- 24 GB
- USB 2.0 connectors
- 1
- Number of SATA connectors
- 6
- Number of Parallel ATA connectors
- 1
Documents
Product details
ASUS DSBV-D. Processor manufacturer: Intel, Processor socket: LGA 771 (Socket J). Maximum internal memory: 24 GB. LAN controller: Intel® 82563EB. Motherboard form factor: SSI CEB, Motherboard chipset: Intel® 5000V
Processor
| Processor manufacturer | Intel |
| Processor socket | LGA 771 (Socket J) |
Memory
| Maximum internal memory | 24 GB |
Internal I/O
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| LAN controller | Intel® 82563EB |
Features
| Motherboard chipset | Intel® 5000V |
| Motherboard form factor | SSI CEB |
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Description
High Technology & Computing Capability Asus serverboard DSBV-D supports two Dual-Core / Quad-Core Intel® Xeon® processors 5000/5100/5300 sequence and Intel® 5000V chipset. It's ready for the broadest range of 64-bit applications and be ready with Intel® VT and Intel® I/OAT technology to focus on high-end server market. With 6 Fully-Buffered DIMM slots, DSBV-D can support dual channel DDR2 533 /667 Fully-Buffered DIMM up to up to 16GB (B3 Stepping) or 24GB (G1 Stepping) Memory Space, significantly improving the serverboard's computing capability. Flexible Expandability DSBV-D has very flexible expansion choices: it supports next-generation PCI Express x 8 slot (x 4 link) and PCI Express x 16 (x8 link) slot; meanwhile, it also protects users' investment with three PCI-X 133/100 MHz slots and one PCI 33MHz/32 bit slot, providing flexible options for server utilization. Reliable Data Protection The serverboard supports mainstream storage, including IDE and SATAII. It has integrated 6 SATAII 300MB/s ports, the built-in Intel® Matrix Storage(Windows®) support RAID 0, 1, 0+1, RAID 5 (S/W) and LSI® MegaRAID (Linux/Windows) support RAID 0, 1, 0+1, which provide better and cost-effective data protection and benefit user with the best upgrade capability.
Condition: Refurbished
Free U.S. ground shipping
Typically 1–2 days handling, 3–7 days in transit.
Purchase orders accepted
Government, enterprise, data center and small business.
