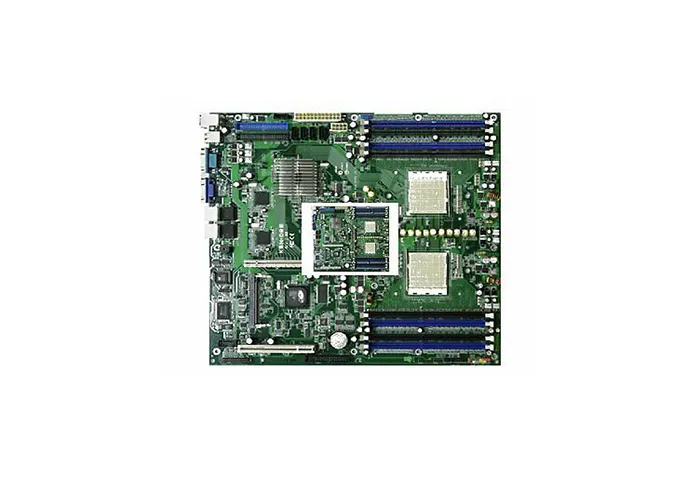

Asus DSBF-D BULK Server Board (Motherboard) Intel 5000P Enhanced
- Intel LGA 771 (Socket J)
- Intel® 5000P
- 8 Maximum internal memory: 32 GB
- 32
DSBF-D isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Processor manufacturer
- Intel
- Processor socket
- LGA 771 (Socket J)
- Number of memory slots
- 8
- Maximum internal memory
- 32 GB
- RAID levels
- 0, 1
- Maximum graphics card memory
- 32 MB
Documents
Product details
ASUS DSBF-D. Processor manufacturer: Intel, Processor socket: LGA 771 (Socket J). Maximum internal memory: 32 GB. RAID levels: 0, 1. Maximum graphics card memory: 32 MB. LAN controller: Intel® 82563EB
Processor
| Processor manufacturer | Intel |
| Processor socket | LGA 771 (Socket J) |
Memory
| Number of memory slots | 8 |
| Maximum internal memory | 32 GB |
Storage controllers
| RAID levels | 0, 1 |
Graphics
| Maximum graphics card memory | 32 MB |
Internal I/O
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 2 |
Network
| LAN controller | Intel® 82563EB |
Features
| Motherboard chipset | Intel® 5000P |
| Power source type | ATX |
Expansion slots
| Expansion slots | 1 x PCI-X 133 MHz 1 x PCI 32bit/33 MHz 1 x PCI-X 133/100 MHz 1 x PCI-X 133/100 MHz 1 x PCI-E x 8 (x 8 link) 1 x PCI-E x16 (x 8 link) 1 x SODIMM f/ ASMB3-SOL |
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Width | 305 mm |
| Depth | 330 mm |
Other features
| Controller 2nd interface type | Intel 6321 ICH (IDE) |
| Controller interface type | Intel 6321 ICH (SATA) |
| I/O ports | 9 x 4pin Fan Header 2 x LAN LED |
| Graphics controller | ATI ES1000 PCI |
| Floppy disk drive connector | Yes |
Description
Latest Dual Core Serverboard with Great Expandability Asus serverboard DSBF-D supports Dual Core Intel® Xeon® processors 5000/5100 Sequence and Intel® 5000P chipset to improve performance and reliability. It's ready for the broadest range of 64-bit applications and with Intel® VT and Intel® I/OAT technology to focus on high-end server market. With 8 FBD DIMM slots, DSBF-D can support 4-channel FBDIMM DDR2 533/667 up to 32GB to significantly improve the serverboard's computing capability. DSBF-D has a full range of expansion choices: it supports next-generation PCI Express x8 slot (x8 link) and PCI Express x16 (x8 link) slot; it protects users' investment with three PCI-X 133/100MHz slots and one PCI 32/33MHz slot as flexible options for server utilization. The serverboard supports mainstream or next-generation storage, including IDE, and SATAII. It has integrated 6 SATAII 300MB/s ports which has built-in RAID functions for better and cost-effective data protection. It covers from embedded SATA RAID 0, 1, 10 with most Linux drivers support for value level market. It really benefits user with the best upgrade capability and data protection.
