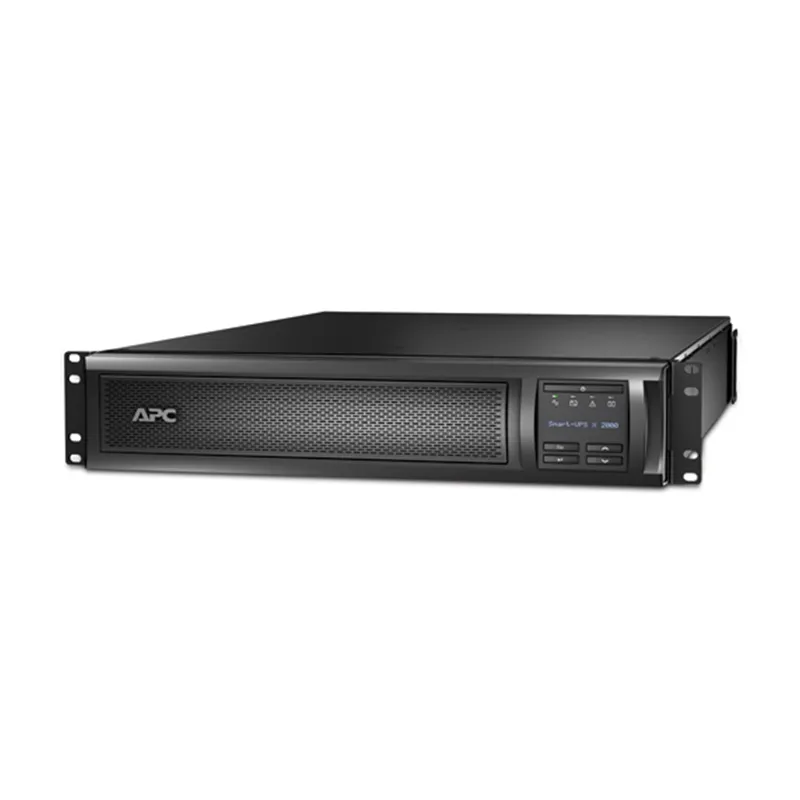

APC SMX2000RMLV2UNC Smart-UPS X 1800-Watts 100V-127V AC 2000VA 3 x Ports 5-15R + 3 x Ports 5-20R + 1...

SKU SMX2000RMLV2UNC

Brand APC

1.92 kVA 1800 W
7 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black

In Stock

$3,273.95

Was $3,851.35 · You save $577.40

Key specifications

See full specs ↓

Output power capacity: 1.92 kVA
Output power: 1800 W
Input operation voltage (min): 75 V
Input operation voltage (max): 154 V
Input frequency: 50/60 Hz
Output operation voltage (min): 120 V

Documents

Brochure APC SMX2000RMLV2UNCBrochure · PDF

Product details

APC SMX2000RMLV2UNC. Output power capacity: 1.92 kVA, Output power: 1800 W, Input operation voltage (min): 75 V. AC outlet types: NEMA 5–15R, NEMA 5–20R, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A

Features

Output power capacity	1.92 kVA
Output power	1800 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Input frequency	50/60 Hz
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	540 J
Efficiency	98%
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	55 dB
Audible alarm(s)	Yes

Ports & interfaces

AC outlet types	NEMA 5–15R, NEMA 5–20R
AC outlets quantity	7 AC outlet(s)

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h

Design

Form factor	Rackmount/Tower
Rack capacity	2U
Cable length	2.44 m
Product colour	Black
LED indicators	Yes

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Certificates

Compliance certificates	RoHS
Certification	BSMI,CSA,EN 50091-2,EN 55022 A,FCC 15 A,NOM,TUV,UL 1778,VCCI A

Weight & dimensions

Width	432 mm
Depth	667 mm
Height	85 mm
Weight	38.5 kg

Packaging data

Package weight

45.4 kg

Other features

Battery type	APCRBC117
Interface	RJ-45 Serial, USB
Nominal output voltage	120 V
Nominal input voltage	120 V
Package dimensions (WxDxH)	596 x 869 x 243 mm

Description

Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. High frequency design Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. Auto recognition of external batteries UPS recognizes when external battery packs are attached and automatically adjusts runtime. Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter Provides actual kilowatt hours of usage for energy conscious users. Outlet group control Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups). Sequenced shutdown and restart Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups). Load shedding Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups). APC USB communications Enables communication with Smart-UPS RTD, SMX and SMT using the APC's historical proprietary USB usages InfraStruXure Central compatible Enables centralized management via APC InfraStruXure® Central.

Condition: Refurbished
