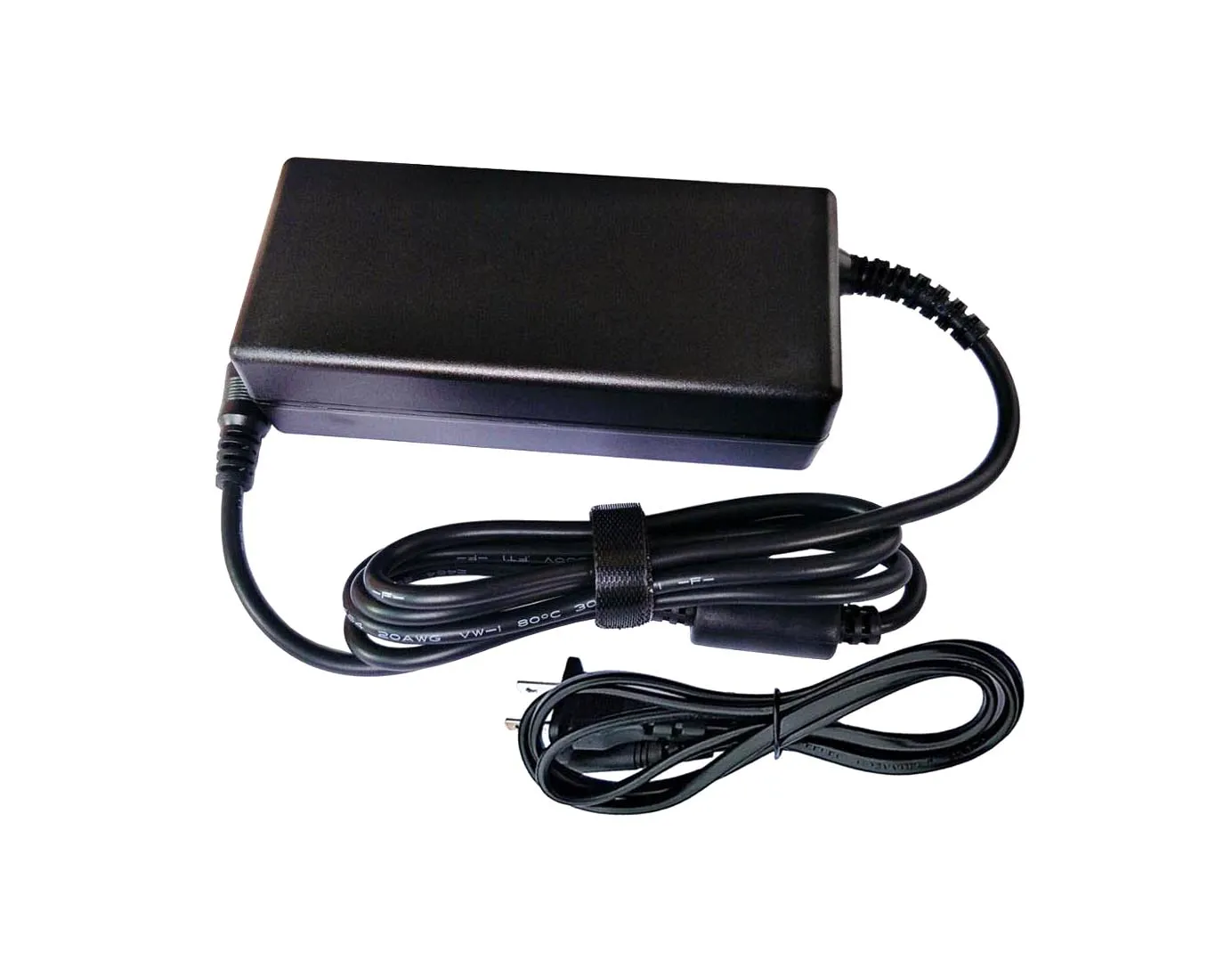

APC AP9505I 24V DC Power Adapter
- Provides power to SmartSlot Expansion Chassis and select NetBotz Applications
- Required for Rack Access Pods for applications with more than 4 pods
- Universal Power Supply Unit for NetBotz
- IEC 60320-C7 and BS-1363 female power cable
AP9505I isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Power supply type
- Indoor
- Power current type
- AC-to-DC
- Output voltage
- 24 V
- Adjustable output voltage
- No
- Connector(s)
- IEC320-C7/BS-1363
- Product colour
- Black
Product details
APC Power, Accessory, NetBotz, Universal 24VDC Output. Power supply type: Indoor, Output voltage: 24 V, Power current type: AC-to-DC. Connector(s): IEC320-C7/BS-1363. Product colour: Black. Compliance certificates: RoHS, REACH, WEEE, Certification: AS/NZS 3548 (C-Tick) class A; cUL listed; CE; EMC directive 2004/108/EC; low voltage directive.... Width: 95 mm, Depth: 70 mm, Height: 70 mm
Features
| Power supply type | Indoor |
| Power current type | AC-to-DC |
| Output voltage | 24 V |
| Adjustable output voltage | No |
Performance
| Connector(s) | IEC320-C7/BS-1363 |
Design
| Product colour | Black |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | AS/NZS 3548 (C-Tick) class A; cUL listed; CE; EMC directive 2004/108/EC; low voltage directive 2006/95/EC; PSE; UL listed; VCCI class A; VDE |
Weight & dimensions
| Width | 95 mm |
| Depth | 70 mm |
| Height | 70 mm |
| Weight | 340 g |
Packaging data
| Package width | 235 mm |
| Package depth | 140 mm |
| Package height | 76 mm |
| Package weight | 500 g |
Technical details
| Number of connectors | 2 |
| Sustainable packaging | No |
| Take-back system | No |
| Packaging without single use plastic | No |
Logistics data
| Harmonized System (HS) code | 85044095 |
| Customs product code (TARIC) | 8504409590 |
| Total carbon footprint (kg of CO2e) | 455.7645333333 |
| Country of origin | India |
Description
External power supply that provides additional power for select NetBotz appliances
