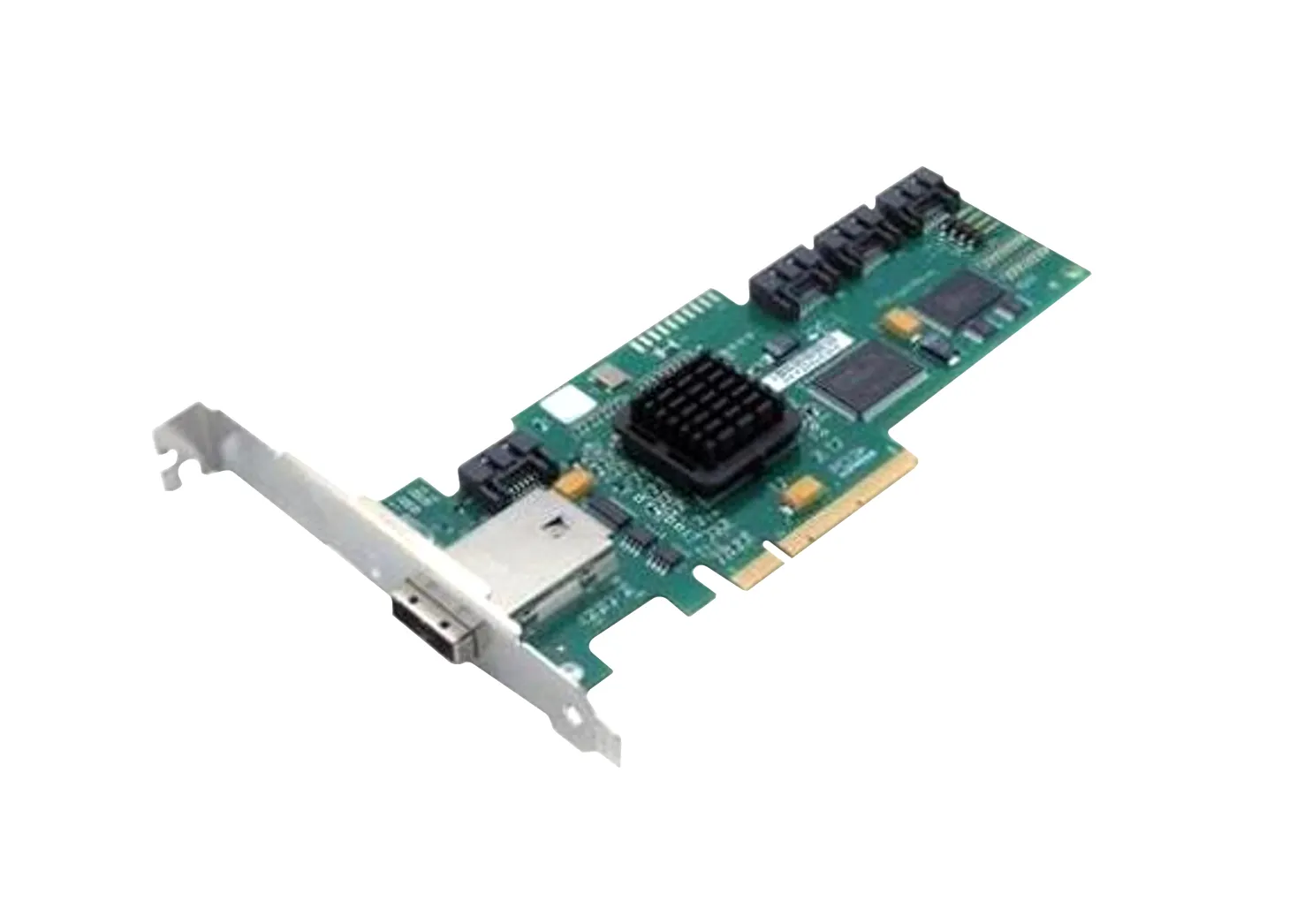

LSI00142 - LSI Logic MegaRAID SAS 8888elp Storage Controller (raid) - Serial Ata-300 SAS- 300 Mbps, Card Only

SKU LSI00142

Brand LSI Logic

PCI Express (PCIe) x8 interface
Supports RAID levels 0, 1, 5, 6, 10, 50, 60
Onboard 512MB DDR2 Cache Memory
8 internal SAS/SATA ports (via 2 x SFF-8087 connectors)
Supports SAS 6Gb/s and SATA 3Gb/s drives
MegaRAID firmware for advanced management
Includes LSI Battery Backup Unit (BBU) support
Designed for high-performance server and workstation environments

Available to order

LSI00142 isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.

Key specifications

See full specs ↓

Controller Type: RAID Controller
Brand: LSI Logic
Model: MegaRAID SAS 9260-8i
Interface: PCI Express (PCIe) x8
Cache Memory: 512MB DDR2
Internal Ports: 8 (2 x SFF-8087)

Product details

The LSI Logic MegaRAID SAS 9260-8i is a high-performance RAID controller card that provides advanced data protection and storage management capabilities. Featuring 512MB of cache and a PCIe x8 interface, it is designed to deliver robust RAID functionality for servers and workstations.

Technical Information

Controller Type	RAID Controller
Brand	LSI Logic
Model	MegaRAID SAS 9260-8i
Interface	PCI Express (PCIe) x8

Additional Specifications

Cache Memory	512MB DDR2
Internal Ports	8 (2 x SFF-8087)
Drive Support	SAS 6Gb/s, SATA 3Gb/s
RAID Levels Supported	0, 1, 5, 6, 10, 50, 60

Description

The LSI Logic MegaRAID SAS 9260-8i is a powerful storage adapter designed to enhance the performance and reliability of server and workstation storage subsystems. It leverages the high bandwidth of the PCIe x8 interface to provide rapid data access and efficient RAID processing. The controller supports a wide array of RAID levels, including 0, 1, 5, 6, 10, 50, and 60, offering flexibility to configure storage arrays based on specific needs for performance, redundancy, or a combination of both. Equipped with 512MB of DDR2 cache memory, the MegaRAID 9260-8i significantly accelerates read and write operations by buffering frequently accessed data. This onboard cache, combined with advanced RAID algorithms, helps to minimize bottlenecks and improve overall system responsiveness, especially under heavy I/O loads. The controller features two internal SFF-8087 connectors, providing a total of eight SAS/SATA ports that can connect to a variety of hard drives and solid-state drives operating at SAS 6Gb/s or SATA 3Gb/s speeds. For enhanced data protection against power failures, the MegaRAID 9260-8i supports LSI's Battery Backup Unit (BBU) or CacheVault technology. This feature ensures that data in the cache is preserved during unexpected power loss, preventing data loss and corruption. The integrated MegaRAID firmware provides comprehensive management tools for configuring RAID arrays, monitoring drive health, and performing maintenance tasks, making it a robust solution for mission-critical storage applications.

Condition: Refurbished
