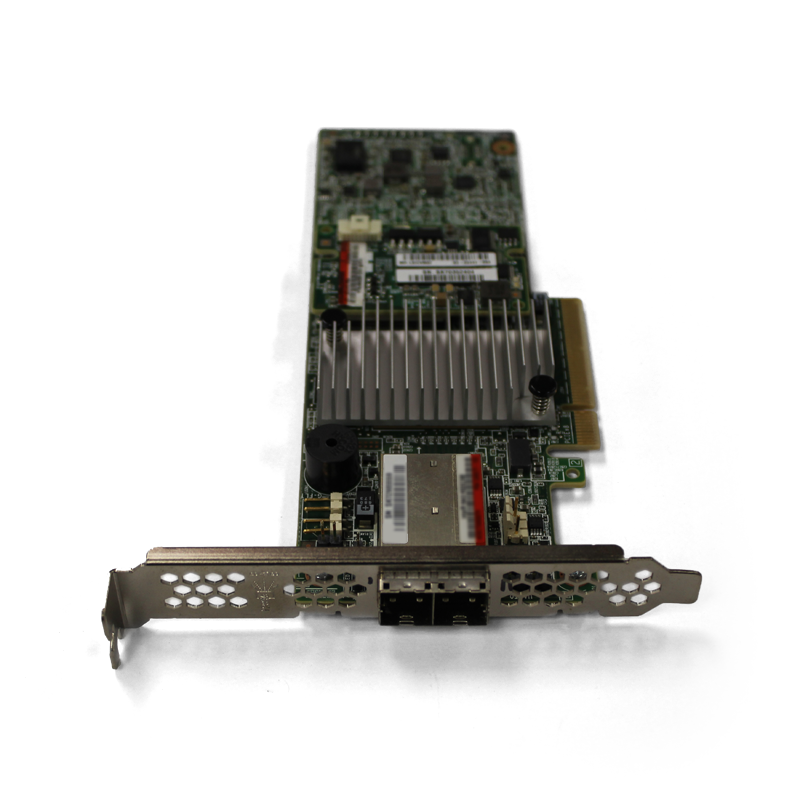

RS3SC008 - Intel SAS 12Gbps PCIe 3.0 8 Port RAID Controller

SKU RS3SC008

Brand Intel

Controller Type: RAID Controller
Ports: 8 Internal SAS/SATA Ports
Interface: PCI Express 3.0 x8
Data Transfer Rate: 12Gb/s SAS
Supports RAID levels 0, 1, 10
Ideal for direct-attached storage (DAS) and basic RAID configurations
Provides reliable storage management for workstations and servers
Features Intel's robust RAID technology

Available to order

RS3SC008 isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.

Key specifications

See full specs ↓

Controller Type: RAID Controller
Number of Ports: 8 Internal
Interface: SAS/SATA
Bus Interface: PCI Express 3.0 x8
Data Transfer Rate: 12Gb/s
RAID Levels Supported: 0, 1, 10

Product details

The Intel RS3SC008 is an 8-port RAID controller designed for servers and workstations requiring flexible SAS/SATA storage connectivity. It utilizes the PCIe 3.0 interface and supports 12Gb/s transfer speeds for high-performance storage solutions.

Technical Information

Controller Type	RAID Controller
Number of Ports	8 Internal
Interface	SAS/SATA
Bus Interface	PCI Express 3.0 x8

Additional Specifications

Data Transfer Rate	12Gb/s
RAID Levels Supported	0, 1, 10
Manufacturer	Intel
Part Number	RS3SC008

Description

The Intel RS3SC008 is a high-performance RAID controller designed to provide robust storage connectivity and management for servers and workstations. Equipped with eight internal SAS/SATA ports, it offers the flexibility to connect a variety of drives, supporting both Serial Attached SCSI (SAS) and Serial ATA (SATA) interfaces. The controller operates at a blazing 12Gb/s per lane, ensuring that even the fastest SSDs and HDDs can be utilized to their full potential, making it suitable for demanding I/O workloads. This controller utilizes the PCI Express 3.0 x8 interface, providing ample bandwidth to prevent bottlenecks between the storage devices and the system's CPU. It is optimized for direct-attached storage (DAS) configurations and supports essential RAID levels, including RAID 0 for performance, RAID 1 for mirroring, and RAID 10 for a combination of performance and redundancy. This makes it an excellent choice for users who need reliable data protection and improved storage performance without the complexity of advanced enterprise RAID features. The RS3SC008 is built with Intel's renowned reliability and performance standards, ensuring stable operation for critical data. It is an ideal solution for small to medium-sized businesses, workstations requiring accelerated storage, or servers needing a straightforward yet powerful way to manage their internal drives. Its 12Gb/s SAS/SATA support and PCIe 3.0 interface make it a capable component for modern computing environments.

Condition: Refurbished
