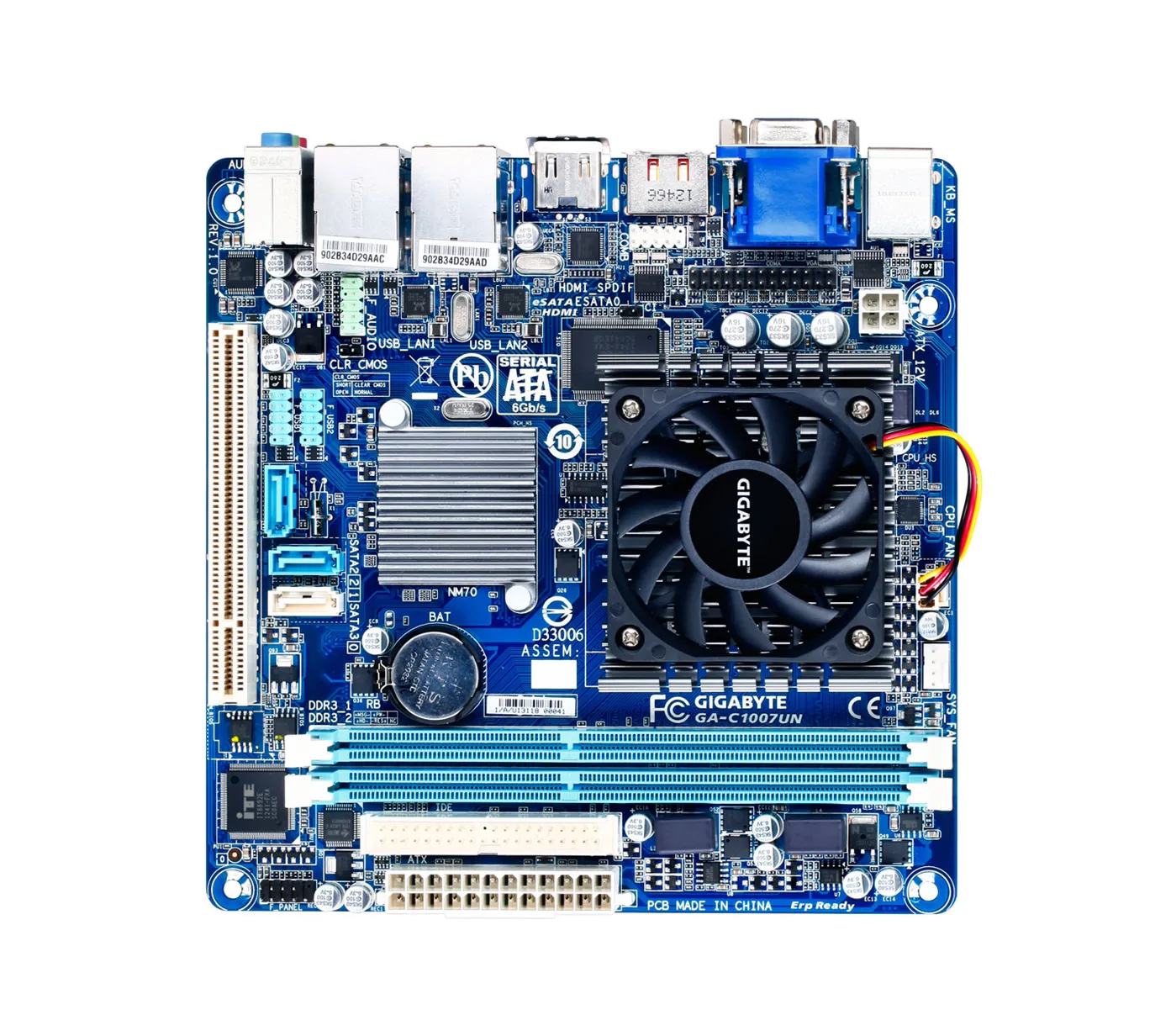

Gigabyte GA-C1007UN Ultra Durable 4 Classic Desktop Motherboard
- Intel NA (integrated CPU) Intel® Celeron® 1007U
- PC mini ITX Intel® NM70 Express Realtek ALC887 7.1 channels
- DDR3-SDRAM 2 DIMM Maximum internal memory: 16 GB
- IDE, SATA II, SATA III
- Intel HD Graphics 1024
- BIOS type: EFI AMI 32 Mbit ACPI version: 2.0a Clear CMOS jumper
- Fast Ethernet, Gigabit Ethernet
GA-C1007UN isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Processor manufacturer
- Intel
- Processor socket
- NA (integrated CPU)
- Compatible processor series
- Intel® Celeron®
- System bus rate
- 5 GT/s
- Processor model
- 1007U
- Processor thermal power (max)
- 17 W
Product details
GIGABYTE GA-C1007UN. Processor manufacturer: Intel, Processor socket: NA (integrated CPU), Compatible processor series: Intel® Celeron®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: IDE, SATA II, SATA III. Maximum graphics card memory: 1024 MB, Graphics card family: Intel, Graphics card: HD Graphics. Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Processor
| Processor manufacturer | Intel |
| Processor socket | NA (integrated CPU) |
| Compatible processor series | Intel® Celeron® |
| System bus rate | 5 GT/s |
| Processor model | 1007U |
| Processor thermal power (max) | 17 W |
Memory
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Supported storage drive interfaces | IDE, SATA II, SATA III |
Graphics
| Maximum graphics card memory | 1024 MB |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 1920 x 1200 pixels |
Internal I/O
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 1 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |
Rear panel I/O ports
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Features
| Motherboard chipset | Intel® NM70 Express |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Power supply, Temperature |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Cooling type | Active |
| Power source type | ATX |
Expansion slots
| PCI slots | 1 |
BIOS
| BIOS type | EFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Number of processors supported | 1 |
| Serial port via internal header | Yes |
| Parallel port via internal header | Yes |
Description
- GIGABYTE Dual UEFI BIOS - All new design of Ultra Durable 4 classic - Industry's Leading All Solid Capacitor Design - Dual LAN for networking flexibility - HDMI interface for smoother HD video playback - GIGABYTE On/Off Charge™ for USB devices - Windows 8 ready UEFI DualBIOS™ Technology With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems. Humidity Protection Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments. Electrostatic Protection GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge. Power Failure Protection Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS. GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges. High Temperature Protection GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000 hour component lifespan. 50,000 Hours Solid Capacitors GIGABYTE Ultra Durable motherboards are equipped with solid capacitors. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.
