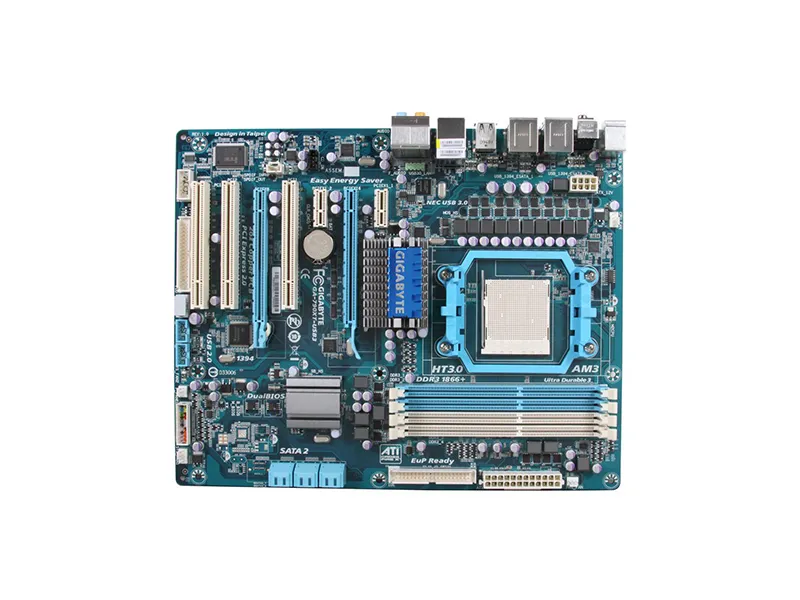

GIGABYTE GA-790XT-USB3. Processor manufacturer: AMD, Processor socket: Socket AM3. Memory voltage: 1.5 V. RAID levels: 0, 1, 5, 10, JBOD. Networking features: 10/100/1000 Mbps. Motherboard form factor: ATX, Motherboard chipset: AMD 790X, Audio output channels: 7.1 channels

Specifications

Processor manufacturer: AMD
Processor socket: Socket AM3
Number of memory slots: 4
Memory voltage: 1.5 V
RAID levels: 0, 1, 5, 10, JBOD
USB 2.0 connectors: 2
Number of SATA connectors: 6
Number of Parallel ATA connectors: 1
S/PDIF out connector: Yes
Front panel audio connector: Yes
CD/AUX audio in: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of IEEE1394 connectors: 1
USB 2.0 ports quantity: 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
eSATA ports quantity: 2
PS/2 ports quantity: 2
Firewire (IEEE 1394) ports: 2

Headphone outputs: 6
S/PDIF out port: Yes
Digital audio optical out: 1
Networking features: 10/100/1000 Mbps
Motherboard chipset: AMD 790X
Audio chip: Realtek ALC889
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Power source type: ATX
Compatible operating systems: Win 7, Vista, XP
PCI Express x1 slots: 2
PCI Express x16 slots: 2
PCI slots: 3
BIOS memory size: 16 Mbit
Width: 305 mm
Depth: 244 mm
Drivers included: Yes
Bundled software: Norton Internet Security
S/PDIF in connector: Yes
Floppy disk drive connector: Yes

Description

Introduction The GA-790XT-USB3 based on AMD 790X chipset, it supports new generation of 45nm AMD AM3 Phenom II/ AthlonII processors, integrated DDR3 memory controller, HyperTransport 3.0 technology links and 2 PCI Express 2.0 graphics interfaces with ATI CrossFireX support. With the latest innovative GIGABYTE USB 3.0/ 3X USB power & Easy Energy Saver technology, the GA-790XT-USB3 is able to provide amazingly fast data transfer via USB3.0 connectors, also to reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom I/ Athlon II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. USB 3.0 Support The GIGABYTE AMD 700A series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices. 3x USB Power Boost GIGABYTE AMD 700A series motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery. Dual Channel DDR3 1866+ MHz Delivering native support for DDR3 memory up to 1866MHz, GIGABYTE Ultra Durable 3 motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease. * DDR3 1866+ is supported with combination of AM3 CPU and qualified memory modules, please refer "Memory Support List" for detail memory support information.

Condition: Refurbished
