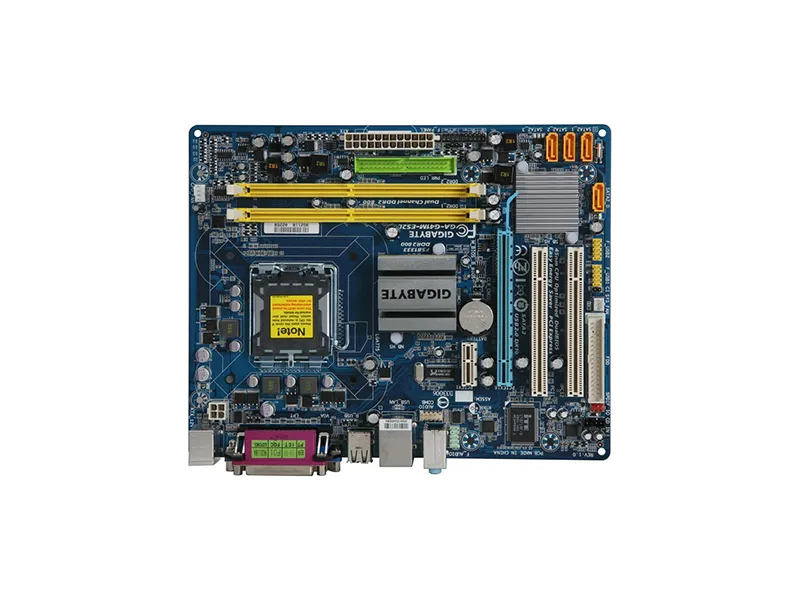

Gigabyte G41M-ES2L GA- Desktop Board Intel Chipset Micro ATX1333MHz
- Intel LGA 775 (Socket T)
- micro ATX Realtek ALC888B 7.1 channels
- 2 Maximum internal memory: 8 GB
G41M-ES2L isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.
Key specifications
See full specs ↓- Processor manufacturer
- Intel
- Processor socket
- LGA 775 (Socket T)
- Number of memory slots
- 2
- Maximum internal memory
- 8 GB
- USB 2.0 connectors
- 2
- Number of SATA connectors
- 4
Product details
GIGABYTE G41M-ES2L. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 8 GB. LAN controller: Realtek RTL8111DL, Networking features: Gigabit Ethernet. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888B. Width: 224 mm, Depth: 194 mm
Processor
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Internal I/O
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| LAN controller | Realtek RTL8111DL |
| Networking features | Gigabit Ethernet |
Features
| Audio chip | Realtek ALC888B |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Width | 224 mm |
| Depth | 194 mm |
Other features
| Controller 2nd interface type | IDE |
| Controller interface type | SATA |
| Graphics controller | GMA X4500 |
| Floppy disk drive connector | Yes |
Description
GA-G41M-ES2L Intel G41 + ICH7 Chipset - Revolution energy saving design with Easy Energy Saver Technology. - Supports 45nm Intel Core 2 multi-core processors with FSB 1333 MHz. - Dual channel DDR2 800 for remarkable system performance. - Integrated Intel Graphics Media Accelerator X4500 (DirectX 10). - Features high speed Gigabit Ethernet. - Home theater quality 8-channel High Definition Audio. - Patented DualBIOS with dual hardware BIOS protection.
