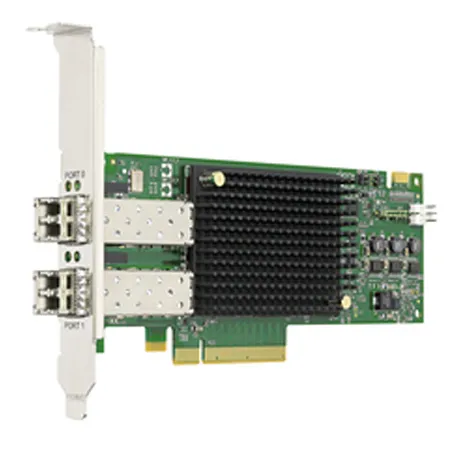

Dell 403-BBME 32GB Dual-Port PCIe 3.0 Fibre Channel Host Bus Adapter

SKU 403-BBME

Shop all Dell parts (59,009) ›

Internal
28.05 Gbit/s
Black, Green, Silver

Available to order

403-BBME isn't on our shelf today — we source it to order. Request a quote and we'll confirm price and lead time within one business day.

Key specifications

See full specs ↓

Host interface: PCIe
Output interface: Fiber
Expansion card form factor: Low-profile
Expansion card standard: PCIe 3.0
Fiber optic connector: FC
Internal: Yes

Documents

Brochure DELL 403-BBMEBrochure · PDF

Buying help

Product details

DELL 403-BBME. Host interface: PCIe, Output interface: Fiber, Expansion card form factor: Low-profile. Product colour: Black, Green, Silver, Purpose: Server, Certification: CSA, UL, FCC, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM. Data transfer rate (max): 28.05 Gbit/s. Compatibility: - PowerEdge FC630 - PowerEdge FC640 - PowerEdge FC830 - PowerEdge R530 - PowerEdge R630 -...

Specifications

Host interface: PCIe
Output interface: Fiber
Expansion card form factor: Low-profile
Expansion card standard: PCIe 3.0
Fiber optic connector: FC
Internal: Yes
Product colour: Black, Green, Silver
Purpose: Server

Certification: CSA, UL, FCC, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM
Data transfer rate (max): 28.05 Gbit/s
Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 5 - 95%
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Compliance certificates: RoHS
Compatibility: - PowerEdge FC630 - PowerEdge FC640 - PowerEdge FC830 - PowerEdge R530 - PowerEdge R630 - PowerEdge R640 - PowerEdge R730 - PowerEdge R730XD - PowerEdge R740 - PowerEdge R740XD - PowerEdge R840 - PowerEdge R940xa

Description

- Support for Dell iDRAC8 with LifeCycle Controller and Emulex OneCommand manager to improve IT staff productivity through simplified deployment and management; - T10 PI high-performance offload for advanced, end-to-end data integrity (requires support from SAN target solution). Emulex LPe32002-M2-D Low Profile Dual Port 32Gb Fibre Channel HBA with 32Gb FC connectivity (short wave optical – LC SFP+ included) from Dell™ are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives and HDD arrays. Compared to the previous generation, they provide up to 2x greater bandwidth, less than half the latency, and new features such as Forward Error Correction and enhanced diagnostics and I/O monitoring capabilities.

Condition: Refurbished
